22/11/2024

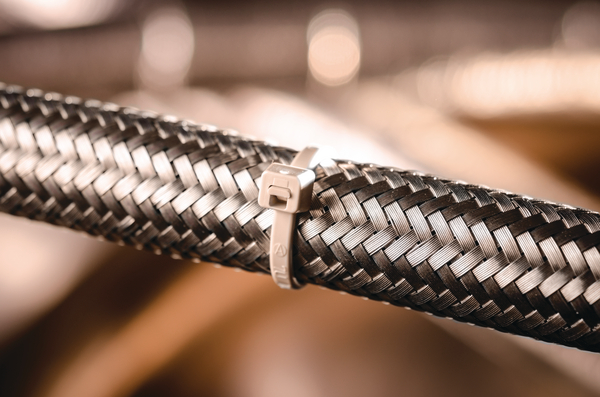

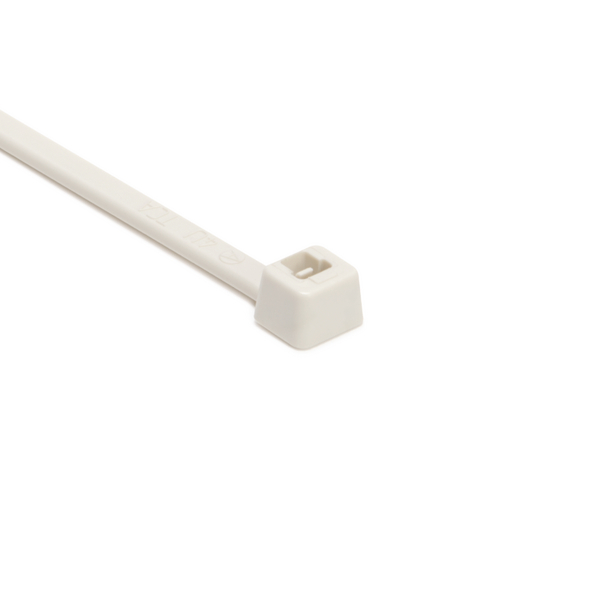

Cable tie, 149.9x8.0mm, ∅1.5-35.0mm, beige, 100pcs.
Art.-No. 111-01670 | PAT100R-PAEK-BGE |  Details

PAEK material has double the tensile strength than nylon.

    Add to watchlist
    Downloads Datasheet
    Colour Beige (BGE)
    Material Polyaryletherketone (PAEK)
    PART DESCRIPTION PAT100R-PAEK-BGE
    Pack Cont. 100pcs.
    Package Content packed in bag
    Type PAT100R
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 149.9mm
    Min.Tensile Strength 445N
    Width (W) 8.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026514215
    Packaging 1 - Weight (kg) 0.12kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 6.99kg
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
