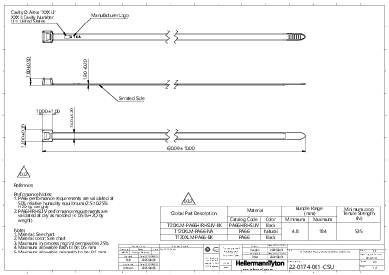

Cable tie inside serrated, 632x7.6mm, ∅5.0-184.0mm, natural, 50pcs.
Art.-No. 111-12851 | T120XLM-PA66-NA |  Details

Heavy duty T-Series cable ties feature inside serrations to provide a positive hold on wire and cable bundles.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist
    Downloads Datasheet e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Natural (NA)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T120XLM-PA66-NA
    Pack Cont. 50pcs.
    Package Content packed in bag
    Product Group Cable Ties inside serrated
    Releasable Closure (Yes/No) No
    Type T120XLM
    Variant Inside Serrated
    Bundle Diameter max (metric) 184.0mm
    Bundle ∅ 5.0-184.0mm
    Bundle ∅ min. 5.0mm
    Cable Tie Head Length (metric) 10.0mm
    Cable Tie Head Width (metric) 13.0mm
    Height (H) 7.8mm
    Length (L) 632mm
    Min.Tensile Strength 535N
    Strap Width max. (G) 0.51"
    Thickness (T) 1.9mm
    Width (W) 7.6mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026735337
    Packaging 1 - Qty 50
    Packaging 3 - Height (m) 0.225425m
    Packaging 3 - Length (m) 0.84455m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0447m³
    Packaging 3 - Weight (kg) 9.6kg
    Packaging 3 - Width (m) 0.23495m
    Packaging 4 - Qty 30000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
