22/11/2024

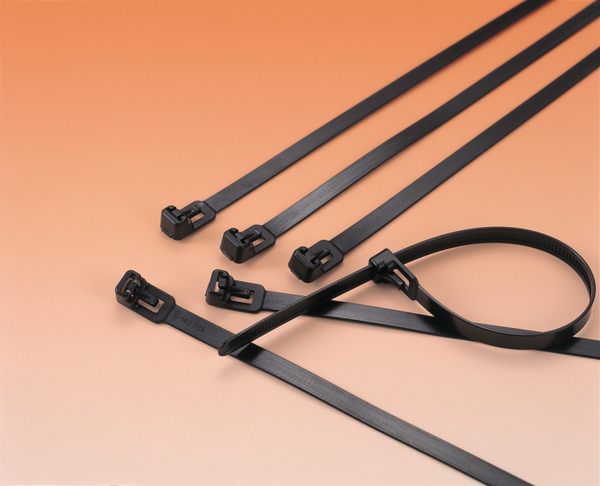

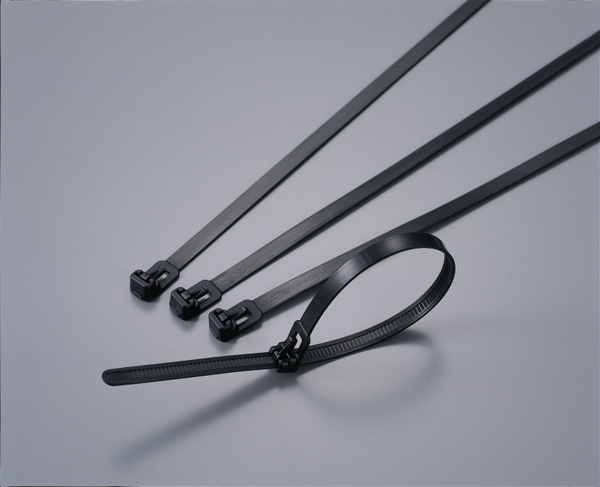

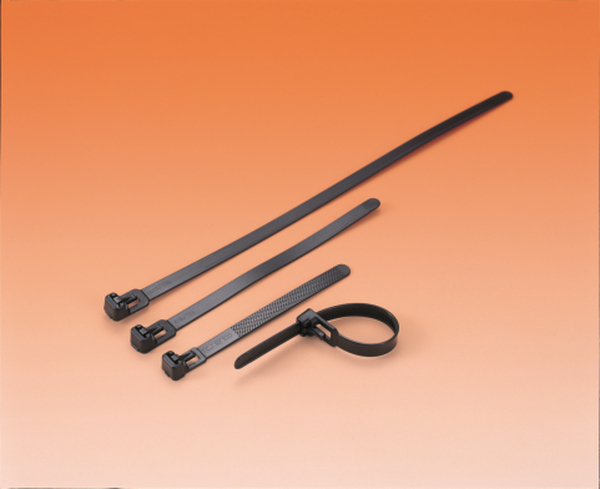

Releasable cable tie, 100x7.4mm, ∅2.5-18.0mm, 222.3N, black, 100pcs.
Art.-No. 115-00045 | RF100-PA66W-BK |  Details

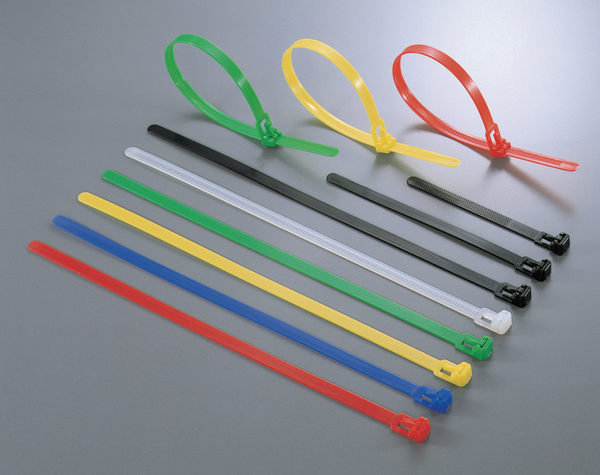

    • Variety of colors are prepared for identification purposes
    Add to watchlist
    Downloads Datasheet
    Application Can be used for temporal bandling, cable identification, and as packing material.
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION RF100-PA66W-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family RF Series
    Product Group Reusable tie
    Releasable Closure (Yes/No) Yes
    Type RF100
    Bundle Diameter max (metric) 18.0mm
    Bundle ∅ 2.5-18.0mm
    Bundle ∅ min. 2.5mm
    Cable Tie Head Height (metric) 7.8mm
    Cable Tie Head Length (metric) 18mm
    Cable Tie Head Width (metric) 11.0mm
    Length (L) 100mm
    Min.Tensile Strength 222.3N
    Thickness (T) 1.1mm
    Width (W) 7.4mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275, IEC 62275:2006
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number E64962
    Country of Origin JP
    GTIN-13 / EAN 4944387214307
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
