22/12/2024

Releasable cable tie, 100x7.0mm, ∅1.6-23.0mm, 170N, black, 100pcs.
Art.-No. 131-11120 | RT100-PA12-BK |  Details

RT-Series with high tensile strength

    • Eeasily released cable tie
    • PA 12 gives excellent weather resistance
    • Ideal for outdoor applications
    • Outside serrated design ensures they do not cause indentation or damage to the insulation or hose
    Add to watchlist
    Downloads Datasheet

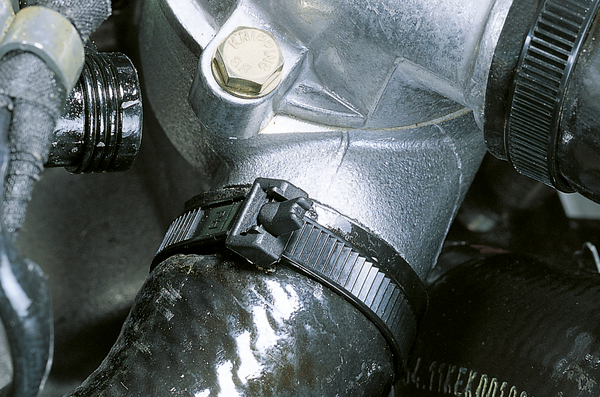

    Application These releasable and reusable cable ties are ideal for either temporary or permanent installation in a wide variety of applications in industries as diverse as, Automotive, construction and panel building.
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 12 (PA12)
    PART DESCRIPTION RT100-PA12-BK
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family RT-series up to 170 N loop tensile strenght
    Product Group Cable tie outside serrated
    Releasable Closure (Yes/No) Yes
    Short Description Releasable Cable Tie 100 x7 mm, black
    Tie Closure plastic pawl
    Type RT100
    Variant Outside Serrated
    Bundle Diameter max (metric) 23.0mm
    Bundle ∅ 1.6-23.0mm
    Bundle ∅ min. 1.6mm
    Length (L) 100mm
    Min.Tensile Strength 170N
    Width (W) 7.0mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    GTIN-13 / EAN 4031026115191
    Packaging 1 - Qty 100
    Packaging 1 - Weight (kg) 0.1110kg
    Packaging 3 - Height (m) 0.17m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 2500
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0171m³
    Packaging 3 - Weight (kg) 3.08kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.02m
    Packaging 4 - Length (m) 1.12m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.834m³
    Packaging 4 - Weight (kg) 187.0kg
    Packaging 4 - Width (m) 0.73m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
