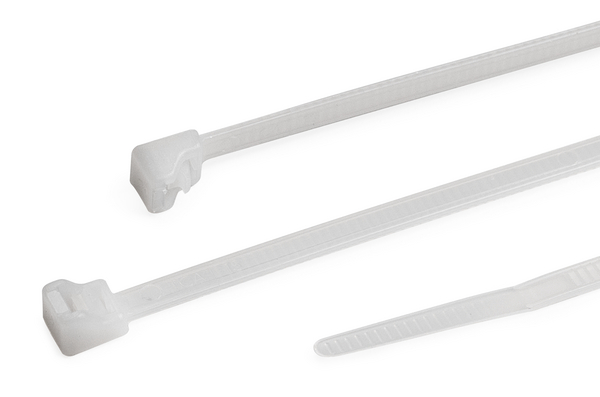

Releasable cable tie, 160.0x4.6mm, ∅1.5-35.0mm, 225N, natural, 100pcs.
Art.-No. 115-06319
| RT50S-PA66-NA
|
Details
- Extended trigger for simple and quick release of ties
- Multiple grades of PA 6.6 for use indoors, outdoors or at high temperatures
More products in this product group:

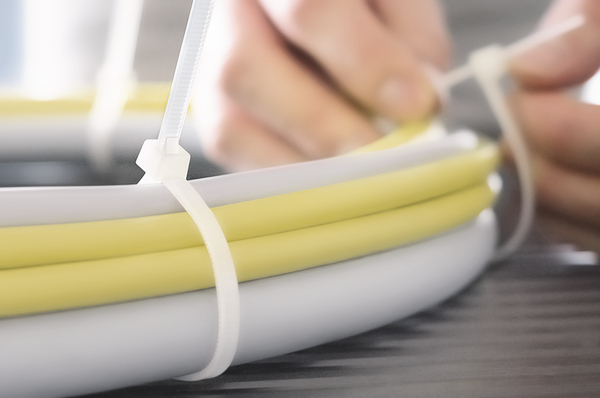

| Application | Used in a wide range of industries these releasable and reusable ties are ideal where temporary installation, or, the addition or removal of cables is required, e.g. Theatres, outdoor events or prototype harnessing work. |
| Colour | Natural (NA) |
| Fixation Method | Releasable Cable Tie |
| Identification Plate Position | none |
| Key product features | releasable |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | RT50S-PA66-NA |

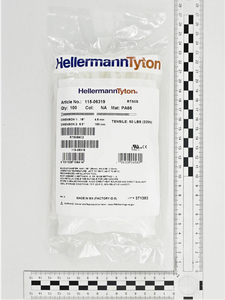

| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | RT Series With Extended Pawl |
| Product Group | Releaseble Cable Ties |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Releasable Cable Tie 160x4.6 mm, natural |
| Tie Closure | plastic pawl |
| Type | RT50S |
| Variant | Inside Serrated |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| Specifications | UL-ZODZ2.E64139 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026108414 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.255m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0008m³ |
| Packaging 1 - Weight (kg) | 0.103201kg |
| Packaging 1 - Width (m) | 0.125m |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.517525m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 5.77005kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.194m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.146m³ |
| Packaging 4 - Weight (kg) | 136.4kg |
| Packaging 4 - Width (m) | 0.8m |
