Releasable cable tie, 226.06x12.6mm, ∅13.0-50.0mm, 1115N, black, 1000pcs.
Art.-No. 115-42001 | SR255S-PA66HIRHSUV-BK |  Details

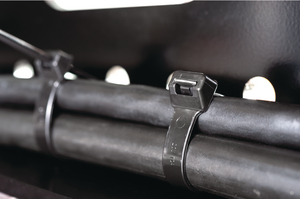

Heavy duty cable tie features a release in the head for easier bundle maintenance.

    • Releasable and reusable cable tie
    • Suitable for lager and heavier bundles
    • Extended trigger for simple and quick release of ties
    • Protected trigger to avoid accidental release
    Package size
    Add to watchlist
    Downloads Datasheet
    Application SR255 Series heavy-duty cable ties offer a release feature in the head allowing for easy installation with the use of a cable tie tool. The head design guarantees high tensile strength even after repeated use, as well as a low insertion force.
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SR255S-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family SR255-Series
    Product Group Cable ties releasable for heavier bundles
    Releasable Closure (Yes/No) Yes
    Type SR255S
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 13.0-50.0mm
    Bundle ∅ min. 13.0mm
    Length (L) 226.06mm
    Min.Tensile Strength 1115N
    Width (W) 12.6mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026421537
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Weight (kg) 7.21kg
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
