03/12/2024
For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

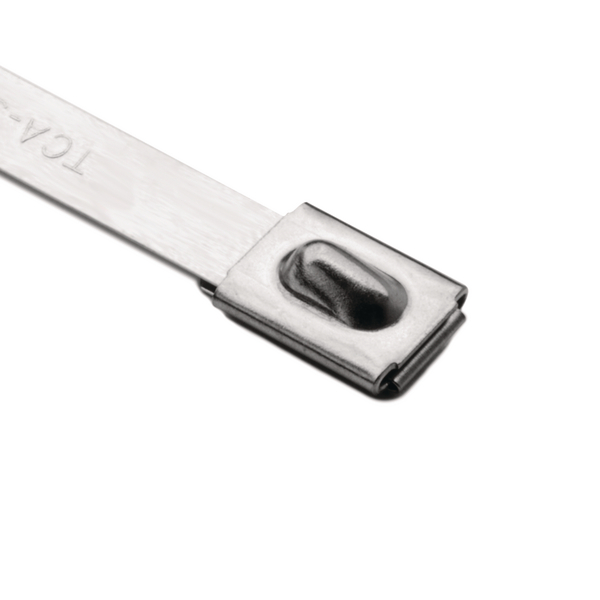

Stainless steel cable tie, ball bearing lock, 681.0x16.0mm, ∅12.0-203.0mm, metal, 50pcs.
Art.-No. 111-01303 | MBT27UH-SS316L-ML |  Details

Double wrap stainless steel cable ties, uncoated MBT_UHD.

    • Stainless steel MBT cable ties
    • Patented non-releasable locking feature
    • Corrosion resistant
    • Weather resistant
    • Outstanding chemical resistance
    • Anti-magnetic
    • Resistant to high temperatures
    • Non-burning material
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Stainless steel ties provide the ideal solution for applications that require a reliable and highly secure fixing solution. Delivering high performance and the ability to withstand extremely high pull forces, these products are also fire resistant making them suitable for hazardous environments. This range of stainless steel MBT cable ties are ideal for a range of industries, such as offshore / oil and gas, electrical power generation, ship building, mass transit and mining. They can also be used within OEM sectors, construction and outdoor radio technology applications. Another use for these metal cable ties is for the installation of lighting within theatres and exhibition halls.
    Colour Metal (ML)
    Identification Plate Position none
    Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
    Key product features vibration absorbing
    Material Stainless Steel (SS316L)
    PART DESCRIPTION MBT27UH-SS316L-ML
    Pack Cont. 50pcs.
    Package Content packed in pack
    Product Family MBT-Series, stainless steel 316L
    Product Group Cable ties with ball-lock
    Releasable Closure (Yes/No) No
    Short Description Metal Cable Tie with Ball-Lock 681x16.0 mm
    Tie Closure ball bearing lock
    Type MBT27UH
    Variant Not Serrated
    Bundle Diameter max (metric) 203.0mm
    Bundle ∅ 12.0-203.0mm
    Bundle ∅ min. 12.0mm
    Length (L) 681.0mm
    Min.Tensile Strength 4100N
    Thickness (T) 0.3mm
    Weight/Unit 0.03028kg
    Width (W) 16.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability non-burning
    Halogen-free Yes
    Hazardous Goods No
    Limited Fire Hazard Yes
    Operating Temperature -80 °C to +538 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    Customs Number 73269098
    GTIN-13 / EAN 5022660339530
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.92m
    Packaging 1 - Qty 50
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0046m³
    Packaging 1 - Weight (kg) 1.514kg
    Packaging 1 - Width (m) 0.1m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
