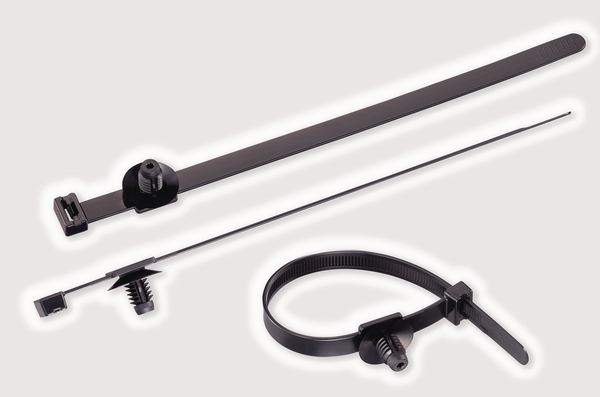

Fixing tie for hole (round), ∅10-41mm, black, 100pcs.
Art.-No. 157-04011 | CM180FT7J-PA66HSW-BK |  Details

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Suitable for use within threaded holes
    • Reusable - Less waste and less pollution of the environment
    Show more
    Add to watchlist
    Downloads Datasheet
    Application This fir tree design is ideal for use in thick panels and threaded, blind holes. The additional disc avoids the intrusion of dust and dirt.
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION CM180FT7J-PA66HSW-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family for round holes, releasable
    Product Group 1-piece fixing ties with fir tree, with disc
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type CM180FT7J
    Bundle Diameter max (metric) 41mm
    Bundle ∅ 10-41mm
    Bundle ∅ min. 10mm
    Length (L) 180mm
    Min.Tensile Strength 200N
    Thickness (T) 1.3mm
    Width (W) 8.0mm
    for Hole ∅ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 1.2 - 4.5 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387123241
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
