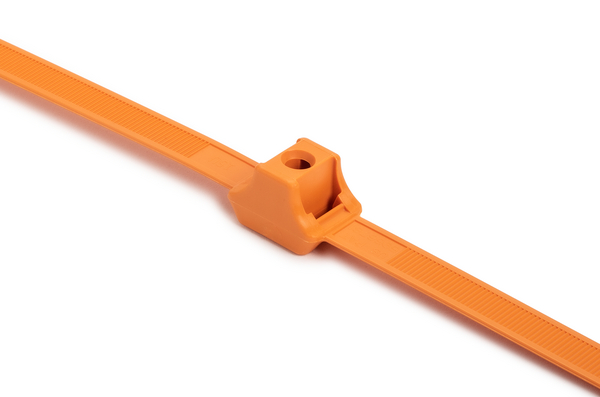

Fixing tie for stud, inside serrated, ∅6.4-58.0mm, orange, 500pcs.
Art.-No. 115-00176 | DCT11-PA66HIRHS-OG |  Details

    • Parallel seperation between hoses, wires, cables and tubing
    • Abrasion protection
    • Optional mounting hole for securing bundles along the Chassis of trucks, trails and heavy duty equipment
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Orange (OG), High Voltage (HV)
    Description Dual Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of tracks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap.
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION DCT11-PA66HIRHS-OG
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 1-piece fixing ties for weld studs, for heavy duty applications, for parallel routing
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type DCT11
    Variant Inside Serrated
    Bundle Diameter max (metric) 58.0mm
    Bundle ∅ 6.4-58.0mm
    Bundle ∅ min. 6.4mm
    Height (H) 19.1mm
    Length (L) 489.0mm
    Min.Tensile Strength 667N
    Stud ∅ 0.25"
    Stud ∅ M6
    Thickness (T) 1.4mm
    Width (W) 12.8mm
    Width (W2) 19.7mm
    for Hole ∅ (FH) 6.2 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026671864
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
