Cable tie outside serrated for direct fixation, 300x6.0mm, ∅10.0-80.0mm, black, 50pcs.
Art.-No. 132-00200 | DE863220-PA66HS-BK |  Details

BHT375 - used for mounting cables via a single hole.

    • Both sides serrated cable tie
    • BHT-Series with round head for larger bearing area
    • BHT375 for centred position
    • CT- and LHT-Series with small squared head for restricted space areas
    • Tensioning with application tool
    Show more
    Add to watchlist
    Downloads Datasheet

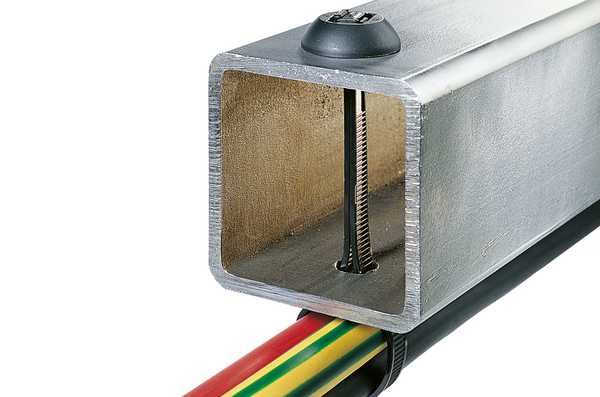

    Application Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Identification Plate Position none
    Key product features for direct fixation
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Material Head Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION DE863220-PA66HS-BK
    Pack Cont. 50pcs.
    Package Content packed in bag
    Product Family DE863220 with square head, 135 N loop tensile strength
    Product Group Cable ties for single hole application
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type DE863220
    Variant Outside Serrated
    Bundle Diameter max (metric) 80.0mm
    Bundle ∅ 10.0-80.0mm
    Bundle ∅ min. 10.0mm
    Height (H) 7mm

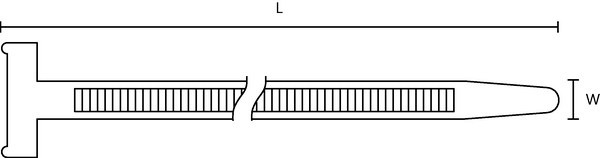

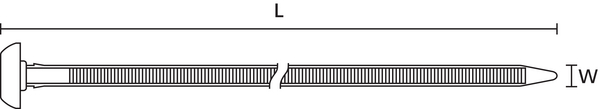

    Length (L) 300mm
    Min.Tensile Strength 135N
    Weight/Unit 0.003868kg
    Width (W) 6.0mm
    for Hole ∅ (FH) 9.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026268170
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.505m
    Packaging 1 - Qty 50
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00404m³
    Packaging 1 - Weight (kg) 0.2089kg
    Packaging 1 - Width (m) 0.16m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.006kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 201.52kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
