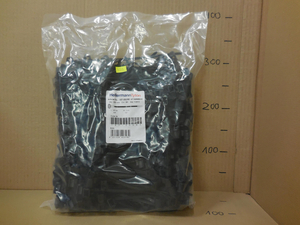

Fixing tie for stud, ∅1.5-35.0mm, black, 500pcs.
Art.-No. 157-00090 | HT160SB6HE-PA66HS-BK Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
Mounting Screw Type M6 Screw
PART DESCRIPTION HT160SB6HE-PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in bag
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type HT160SB6HE
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.5-35.0mm
Bundle ∅ min. 1.5mm
Height (H) 1.35mm
Height (H2) 17.3mm
Length (L) 167.0mm
Min.Tensile Strength 200N
Stud ∅ M6
Weight/Unit 0.002966kg
Width (W) 5mm
Width (W2) 21.2mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin KR
Customs Number 39269097
GTIN-13 / EAN 4031026403182
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01125
Packaging 1 - Weight (kg) 1.483kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 6.552kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 138.936kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
