13/11/2024

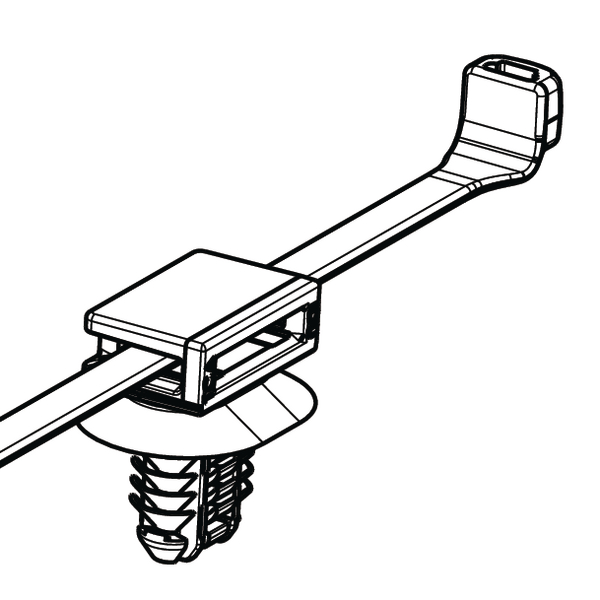

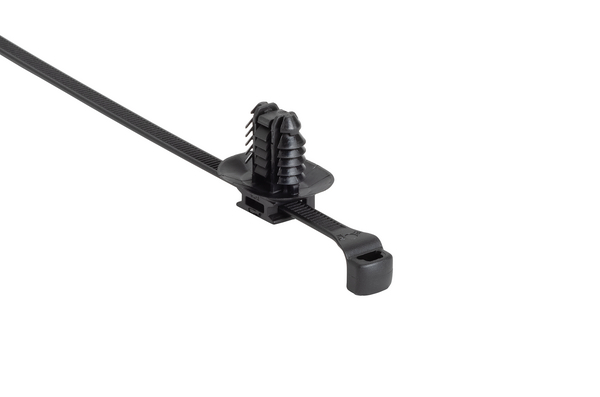

Fixing tie for hole (oval), inside serrated, ∅6.0-50.0mm, black, 2000pcs.
Art.-No. 156-03939 | LPT50RSADFTOVAL-SET-PA66HS/PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION LPT50RSADFTOVAL-SET-PA66HS/PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type LPT50RSADFTOVAL-SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 6.0-50.0mm
    Bundle ∅ min. 6.0mm
    Fixing Hole Shape Oval
    Height (H) 20.0mm
    Length (L) 194.6mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 6.0mm
    Strap Width max. (G) 0.2
    Strap Width max. (G) 5.08mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +125 °C, -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026696195
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Qty 80000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
