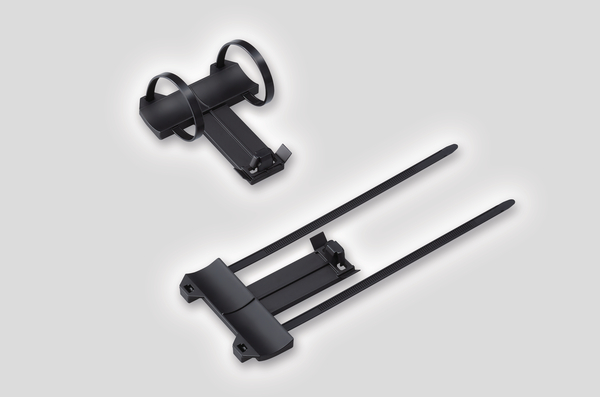

Fixing tie for hole (oval), ∅7-34mm, black, 50pcs.
Art.-No. 126-00365 | OF160DB-WPM712-PA66HSW-BK Details

  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space
Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
Colour Black (BK)
Identification Plate Position none
Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
PART DESCRIPTION OF160DB-WPM712-PA66HSW-BK
Pack Cont. 50pcs.
Package Content packed in bag
Product Family OF160DB-WPM712
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Type OF160DB-WPM712
Bundle Diameter max (metric) 34mm
Bundle ∅ 7-34mm
Bundle ∅ min. 7mm
Height (H) 13.5mm
Length (L) 160mm
Min.Tensile Strength 150N
Thickness (T) 1.3mm
Width (W) 60mm
for Hole ∅ (FH) 7.0 x 12.0 mm
for Panel Thickness min - max 0.5 - 2.6 mm
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
Country of Origin JP
GTIN-13 / EAN 4944387120080
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
