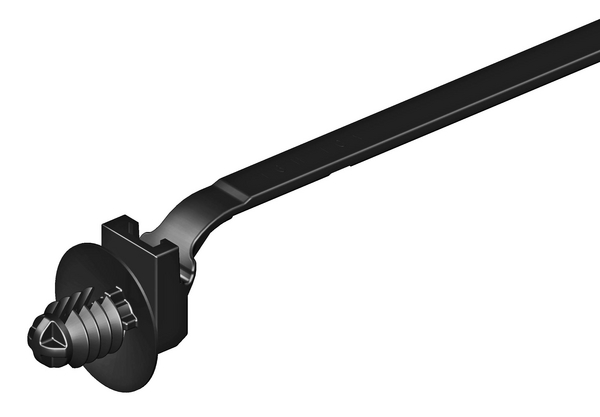

Fixing tie for hole (round), ∅1.6-30mm, black, 500pcs.
Art.-No. 157-00096 | OS160FT6-PA66HS-BK |  Details

Fir tree foot parts can be used for a variety of panel thicknesses.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION OS160FT6-PA66HS-BK
    Pack Cont. 500pcs.

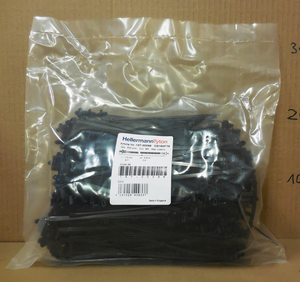

    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type OS160FT6
    Bundle Diameter max (metric) 30mm
    Bundle ∅ 1.6-30mm
    Bundle ∅ min. 1.6mm
    Disc ∅ 16.0mm
    Height (H) 1.4mm
    Length (L) 170.0mm
    Min.Tensile Strength 200N
    Thickness (T) 1.4mm
    Weight/Unit 0.001585kg
    Width (W) 5.3mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    Customs Number 39269097
    GTIN-13 / EAN 4031026409337
    Packaging 1 - Height (m) 0.13m
    Packaging 1 - Length (m) 0.29m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00679m³
    Packaging 1 - Weight (kg) 0.792501kg
    Packaging 1 - Width (m) 0.18m
    Packaging 3 - Height (m) 0.218m
    Packaging 3 - Length (m) 0.599m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0522m³
    Packaging 3 - Weight (kg) 5.505006kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.234m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.185m³
    Packaging 4 - Weight (kg) 131.1kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
