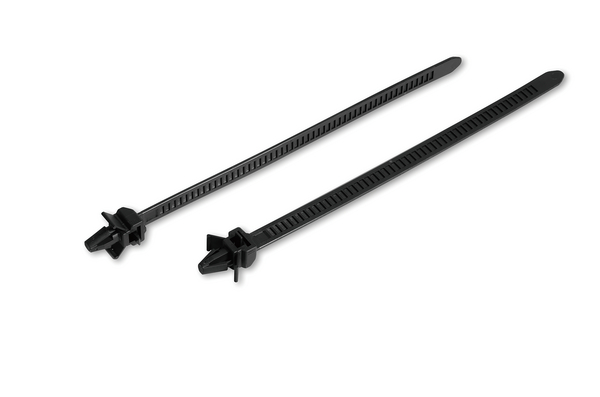

Fixing tie for hole (round), ∅6-38mm, black, 100pcs.
Art.-No. 115-00190 | RT50RSF7.0-PA66W-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION RT50RSF7.0-PA66W-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family for round holes, releasable
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) Yes
    Type RT50RSF7.0
    Bundle Diameter max (metric) 38mm
    Bundle ∅ 6-38mm
    Bundle ∅ min. 6mm
    Length (L) 172mm
    Min.Tensile Strength 225N
    Thickness (T) 1.3mm
    Width (W) 8.0mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max 0.5 - 2.4 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387125108
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
