13/11/2024

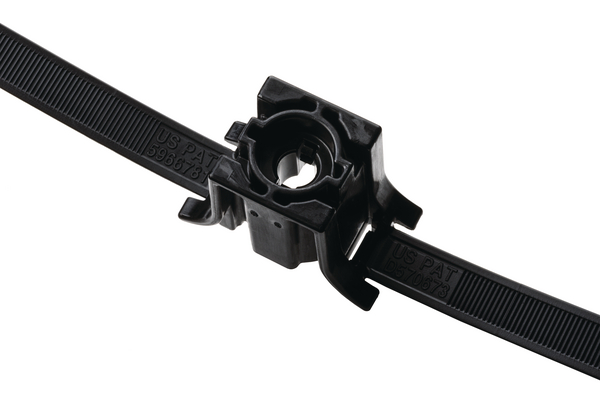

Fixing tie for stud, ∅9.5-86.4mm, black, 250pcs.
Art.-No. 157-00060 | SDCTL-PA66HIRHSUV-BK Details

  • Wide strap minimizes pinching of soft hoses and convoluted tubing.
  • Clamping rails increase circumferential grip on varying bundle diameters.
  • Locking stud mount pawls allow for easy hand insertion.
  • Nut or weld nesting counterbore provides flush mounting at the base.
Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Black (BK)
Description Stand Off Dual Clamp Ties offer the same features as the standard dual clamp tie, with a standoff mount that secures the bundle away from the side of the frame rail. This protects the bundles from bolts and other protrusions.
Fixation Method Weld Stud Fixing
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION SDCTL-PA66HIRHSUV-BK
Pack Cont. 250pcs.
Package Content packed in bag
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type SDCTL
Bundle Diameter max (metric) 86.4mm
Bundle ∅ 9.5-86.4mm
Bundle ∅ min. 9.5mm
Height (H) 37.30mm

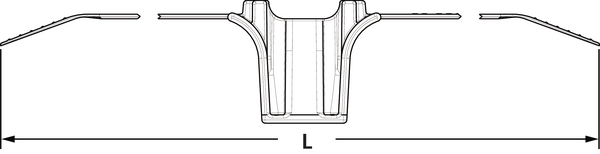

Length (L) 663.0mm
Min.Tensile Strength 445N
Stud ∅ 5/16"
Stud ∅ M8

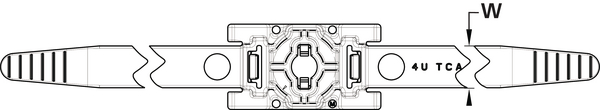

Width (W) 12.7mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
GTIN-13 / EAN 4031026415635
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Width (m) 0.2921m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
