Fixing tie for stud, ∅9.5-58.4mm, black, 250pcs.
Art.-No. 117-00012 | SDCTR312-PA66HIRHSUV-BK Details

  • Wide strap minimizes pinching of soft hoses and convoluted tubing.
  • Clamping rails increase circumferential grip on varying bundle diameters.

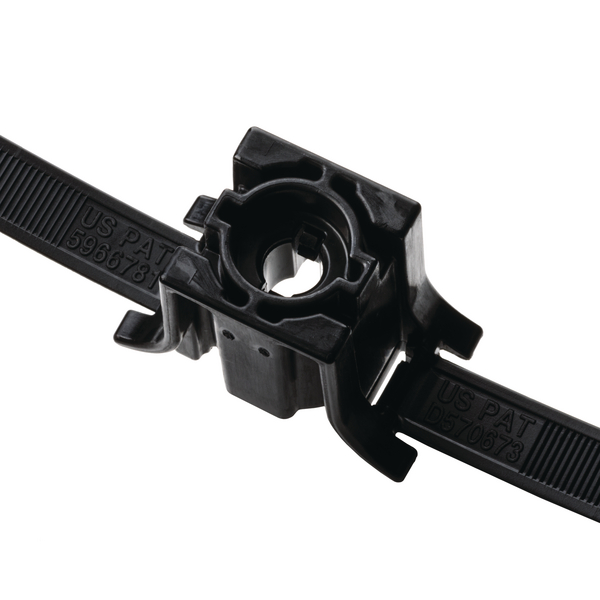

  • Locking stud mount pawls allow for easy hand insertion.
  • Nut or weld nesting counterbore provides flush mounting at the base.

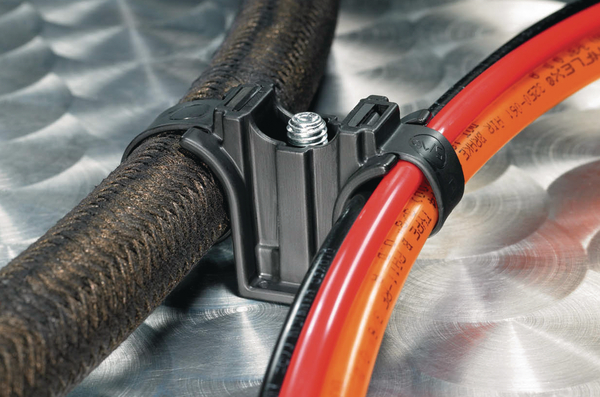

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Black (BK)

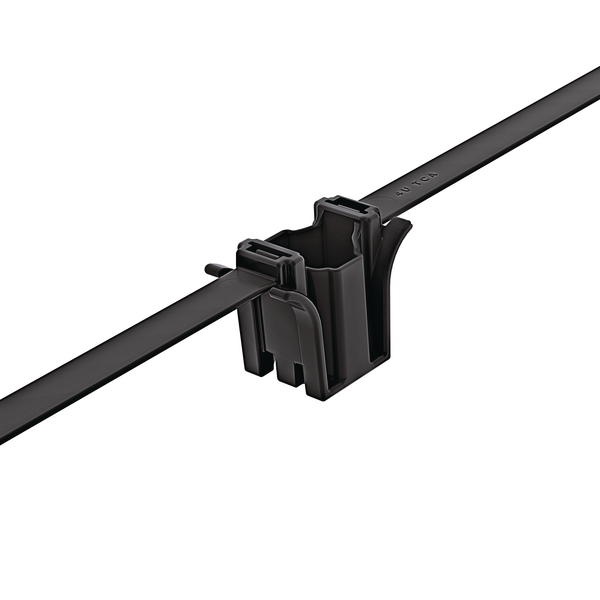

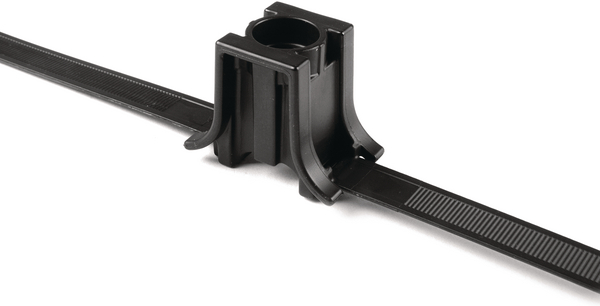

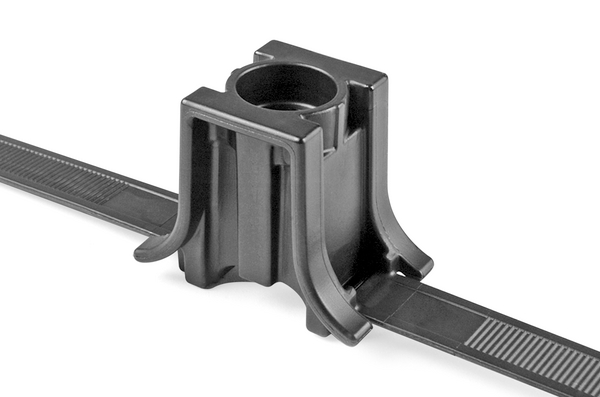

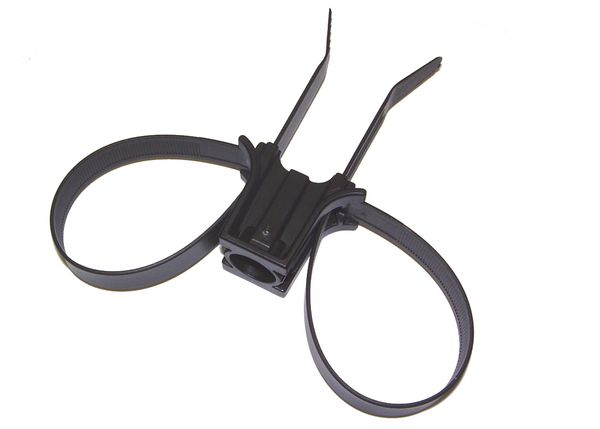

Description Stand Off Dual Clamp Ties offer the same features as the standard dual clamp tie, with a standoff mount that secures the bundle away from the side of the frame rail. This protects the bundles from bolts and other protrusions.
Fixation Method Weld Stud Fixing
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION SDCTR312-PA66HIRHSUV-BK
Pack Cont. 250pcs.
Package Content packed in carton
Product Family SDCTR312 for 8 mm studs
Product Group 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications, for parallel routing
Releasable Closure (Yes/No) No
Short Description 1-Piece fixing tie 510.5x12.7 mm, for weld studs, for heavy duty applications, for parallel routing, PA66HIRHSUV, black
Tie Closure plastic pawl
Type SDCTR312
Bundle Diameter max (metric) 58.4mm
Bundle ∅ 9.5-58.4mm
Bundle ∅ min. 9.5mm

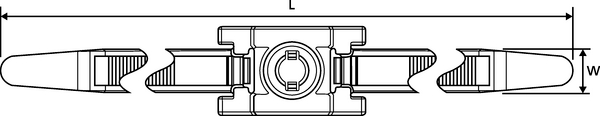

Height (H) 37.30mm
Length (L) 510.5mm
Min.Tensile Strength 445N
Stud ∅ 5/16"
Stud ∅ M8
Weight/Unit 0.019kg
Width (W) 12.7mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026510668
Packaging 1 - Qty 250
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 4.750001kg
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Qty 250
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Weight (kg) 5.570001kg
Packaging 3 - Width (m) 0.2921m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 87.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
