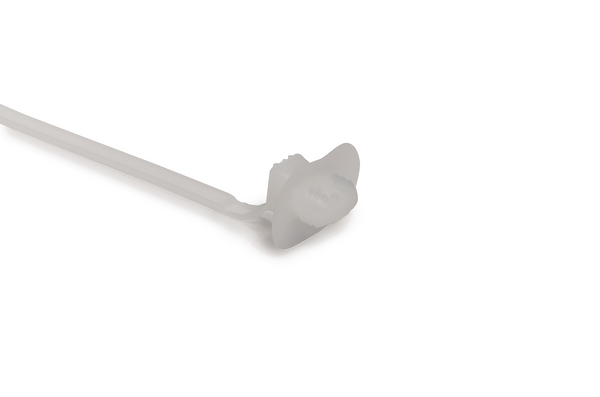

Fixing tie for hole (oval), outside serrated, ∅1.0-33.0mm, natural, 500pcs.
Art.-No. 157-00180 | SG180FT62122A-PA66-NA |  Details

This 1-piece fixing tie with fir tree design for oval holes features anti-twist protection.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Natural (NA)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION SG180FT62122A-PA66-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group 1-piece fixing ties with fir tree, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type SG180FT62122A
    Variant Outside Serrated
    Bundle Diameter max (metric) 33.0mm
    Bundle ∅ 1.0-33.0mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 16.0 x 26.0mm
    Fixing Hole Shape Oval
    Length (L) 180.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7 - 3.0mm
    Thickness (T) 1.5mm
    Width (W) 5.1mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin KR
    GTIN-13 / EAN 4031026749792
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
