Fixing tie for hole (round), outside serrated, ∅5.0-25.4mm, black, 250pcs.
Art.-No. 156-03268
| SGT100SFT6.7-PA66HS/TPE/PA66HIRHS-BK
|
Details
- Suitable for a variety of fastening requirements thanks to different foot parts (for holes, for studs, for screw fixings)
- Soft Grip cable ties assure high protection of sensitive harnesses and fluid system tubes
- Soft TPE inner layer inhibits lateral movements of the bundle, especially on smooth tubing
- Pre-locking feature holds the cable tie in place before it is tensioned
- Soft Grip cable ties can be removed with a screwdriver for maintenance
- EVO9SG application tool with adjusted nose piece available
More products in this product group:
This product is part of:
SamplePack_Fluid_Routing_Management
SamplePackSOFTGRIP
Application | Soft Grip mounts are especially designed for use with Soft Grip ties. The versatile combinations provide a variety of flexible fastening options for fluid management / cooling systems in vehicles. The Soft Grip Series is a unique semi-customised part solution and designed to save time, money and development effort. The foot parts of the mounts can be adjusted to individual customer requirements. In the event of maintenance, the cable tie can be easily removed using a screwdriver. Only the cable tie then needs to be replaced, not the whole fixing element. |
Colour | Black (BK) |
Description | These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt. |
Fixation Method | Fir Tree |
Identification Plate Position | none |
Key product features | softgrip |
Material | Polyamide 6.6, heat stabilised (PA66HS), Thermoplastic Elastomer (TPE), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | SGT100SFT6.7-PA66HS/TPE/PA66HIRHS-BK |
Pack Cont. | 250pcs. |
Package Content packed in | bag |
Product Family | Fir tree parts FT6 |
Product Group | 2-piece fixing ties for strong hold on smooth bundles |
Short Description | 2-piece Soft Grip fixing tie with fir tree for round holes 6.3 - 7.0 mm |
Tie Closure | plastic pawl |
Type | SGT100SFT6.7 |
Bundle Diameter max (metric) | 25.4mm |
Bundle ∅ | 5.0-25.4mm |
Bundle ∅ min. | 5.0mm |
Cable Tie Head Height (metric) | 7.5mm |
Cable Tie Head Width (metric) | 16.0mm |
Disc ∅ | 16.0mm |

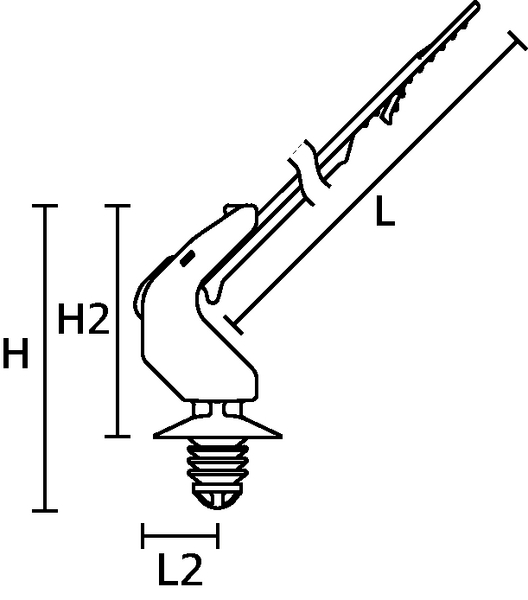

Height (H) | 38.4mm |
Height (H2) | 29.5mm |
Length (L) | 140.0mm |
Length (L2) | 9.5mm |
Min.Tensile Strength | 315N |
Panel Thickness max. | 0.6 - 4.2mm |
Thickness (T) | 2.85mm |
Weight/Unit | 0.005748kg |
Width (W) | 12.7mm |
Width (W2) | 19.8mm |
for Hole ∅ (FH) | 6.3 - 7.0 mm |
for Panel Thickness min - max | 0.6 - 4.2 mm |
|
|
Country of Origin | PL |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026732855 |
Packaging 1 - Height (m) | 0.09m |
Packaging 1 - Length (m) | 0.455m |
Packaging 1 - Qty | 250 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.01638m³ |
Packaging 1 - Weight (kg) | 1.466135kg |
Packaging 1 - Width (m) | 0.4m |
Packaging 3 - Height (m) | 0.368m |
Packaging 3 - Length (m) | 0.584m |
Packaging 3 - Qty | 1750 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.083m³ |
Packaging 3 - Weight (kg) | 11.082945kg |
Packaging 3 - Width (m) | 0.386m |
Packaging 4 - Height (m) | 1.248m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 21000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.198m³ |
Packaging 4 - Weight (kg) | 153.984kg |
Packaging 4 - Width (m) | 0.8m |
