17/07/2024

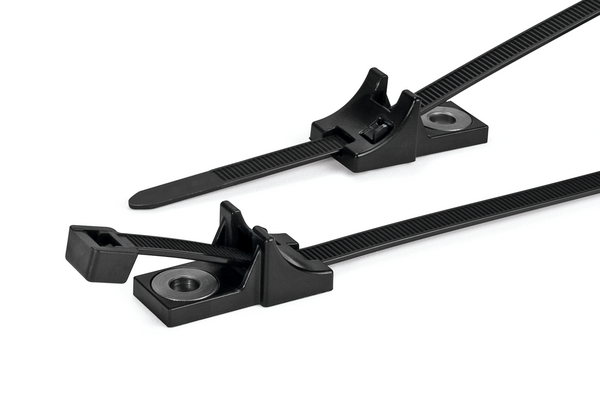

Fixing tie for screw fixation, ∅5.0-105.0mm, grey, 100pcs.
Art.-No. 156-04101 | T120RCPCM6-TS-PA46-GY |  Details

Cable tie with very robust HDM-mount for screw applications.

    Add to watchlist
    Downloads Datasheet
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Grey (GY)
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION T120RCPCM6-TS-PA46-GY
    Pack Cont. 100pcs.
    Package Content packed in bag
    Type T120RCPCM6-TS
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    Length (L) 390.0mm
    Length (L2) 42.6mm
    Min.Tensile Strength 535N
    Thickness (T) 1.9mm
    Weight/Unit 0.01103kg
    Width (W) 7.6mm
    Width (W2) 20.0mm
    for Hole ∅ (FH) M6
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026672069
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.59m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01746m³
    Packaging 1 - Weight (kg) 1.14kg
    Packaging 1 - Width (m) 0.37m
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0828m³
    Packaging 3 - Weight (kg) 12.055kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 12000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 165.66kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
