19/11/2024

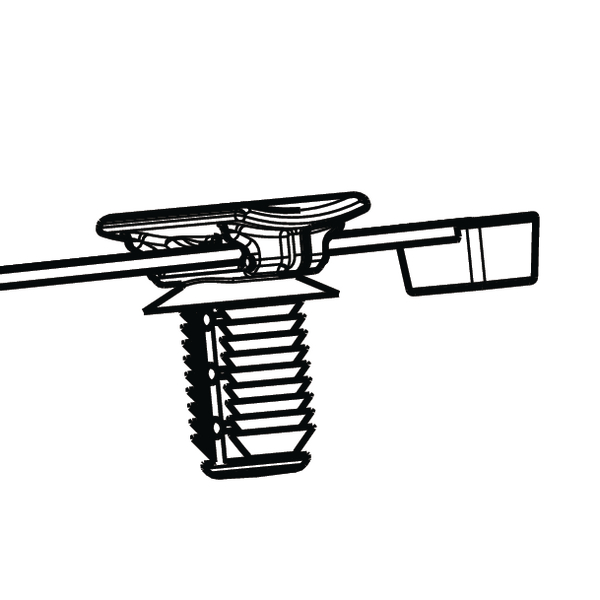

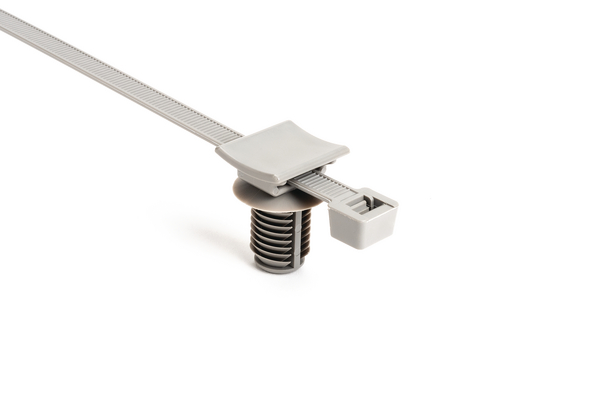

Fixing tie for hole (round), inside serrated, ∅5.0-105.0mm, grey, 1000pcs.
Art.-No. 156-02592 | T120RFT12SET-PA46-GY |  Details

Unassembled set allows user to connect the cable tie either perpendicular or inline with the oval mounting hole.

    Add to watchlist
    Downloads Datasheet
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T120RFT12SET-PA46-GY
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RFT12SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 29.70mm
    Height (H2) 19.0mm
    Length (L) 385.0mm
    Min.Tensile Strength 535N
    Panel Thickness max. 0.6 - 11.0mm
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    Width (W2) 20.40mm
    for Hole ∅ (FH) 11.6 - 12.4 mm
    for Panel Thickness min - max 0.6 - 11 mm
    for Panel Thickness min - max 0 - 0.4 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026714592
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
