18/03/2025

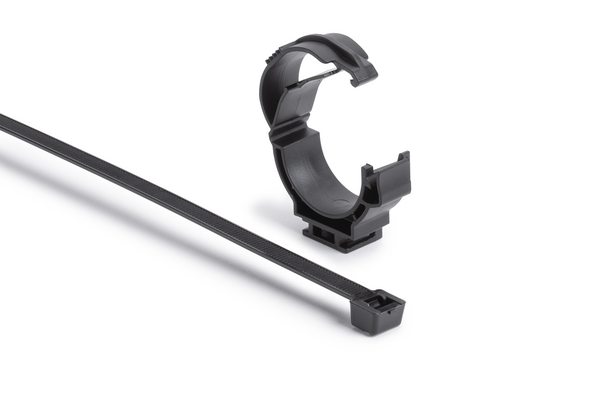

Fixing tie, ⌀25.0-30.0mm, black, 1000pcs.
Art.-No. 156-03596 | T120RLOC25-30-SET-PA66HIRHSUV-BK |

Copied

    Add to watchlist
    Downloads
    Cable ⌀ max 100.0mm
    Cable ⌀ min 10.0mm
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T120RLOC25-30-SET-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RLOC25-30-SET
    Variant Inside Serrated
    Attach to ⌀ 25.0 - 30.0
    Attach to Diameter 0.98 - 1.18 "
    Bundle ⌀ 25.0-30.0mm
    Bundle ⌀ min. 25.0mm
    Bundle Diameter Nom. (ND) 25.0 mm - 30.0 mm
    Bundle Diameter max (metric) 30.0mm
    Depth (D) 15.0mm
    Height (H) 44.6mm
    Length (L) 387.0mm
    Length (L2) 63.6mm
    Min.Tensile Strength 535N
    Width (W) 15.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026754390
    Packaging 1 - Qty 1000
    Packaging 1 - Type carton
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
