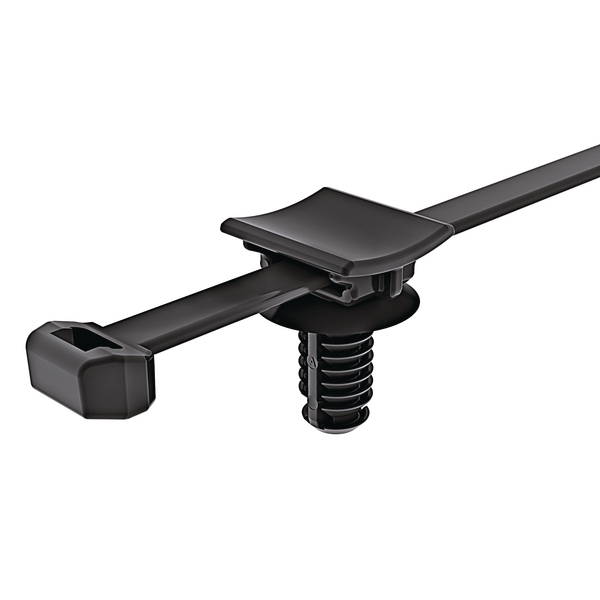

Fixing tie for hole (round), outside serrated, ∅5.0-105.0mm, black, 500pc.
Art.-No. 156-01520 | T120ROSFT9HCLG-PA66HS/PA66HIRHS-BK |  Details

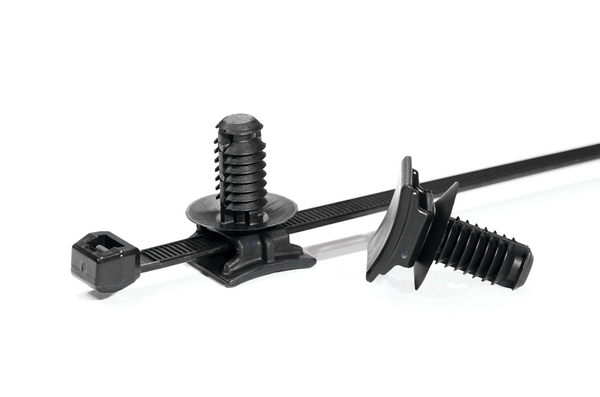

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T120ROSFT9HCLG-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pc.
    Package Content packed in bag
    Product Family Fir tree parts FT9
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120ROSFT9HCLG
    Variant Outside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 29.2mm
    Height (H2) 18.40mm
    Length (L) 383.5mm
    Min.Tensile Strength 535N
    Panel Thickness max. 1.0 - 15.8mm
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    for Hole ∅ (FH) 8.7 - 9.2 mm
    for Panel Thickness min - max 1 - 15.8 mm
    for Panel Thickness min - max 0 - 0.6 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520353
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
