Fixing tie for hole (round), inside serrated, ∅50.0mm, black, 500pcs.
Art.-No. 150-83799 | T18LSFT4D12-PA66W-BK |  Details

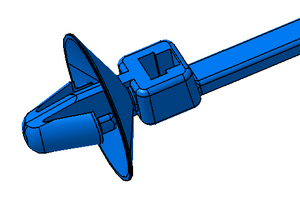

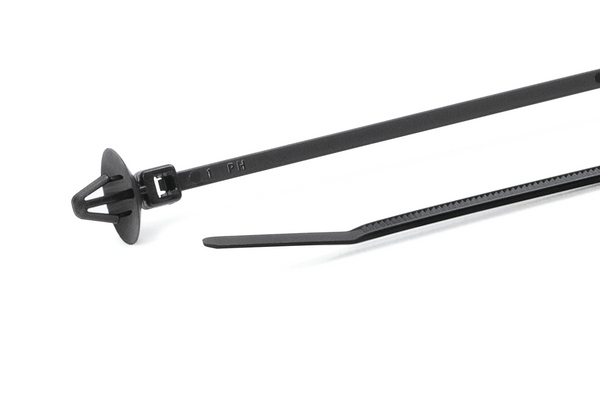

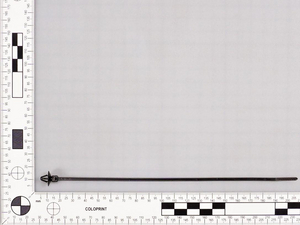

1-Piece Fixing Tie for round holes with disc and flat arrow head.

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
    • Cable tie head always situated in a defined position
    • KSFT-types with specially rounded arrowhead minimise the assembly height
    Show more
    Add to watchlist
    Downloads Datasheet
    Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION T18LSFT4D12-PA66W-BK

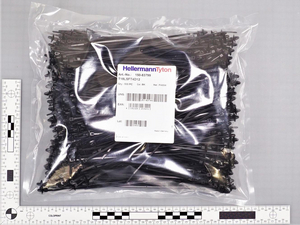

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Tie with Arrowhead and Disc
    Tie Closure plastic pawl
    Type T18LSFT4D12
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 50.0mm
    Weight/Unit 0.000668kg
    for Hole ∅ (FH) 3.9 - 4.1 mm
    for Panel Thickness min - max 0.9 - 1.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026203201
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.275m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00433m³
    Packaging 1 - Weight (kg) 0.347862kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 7.96724kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 116.64kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
