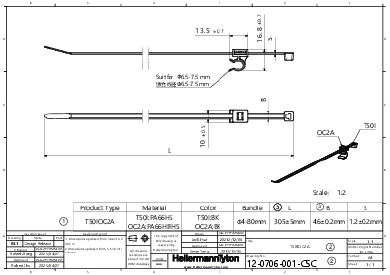

Fixing tie with pipe/tube holder, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 156-01060 | T50IOC2A-PA66HS/PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50IOC2A-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Type T50IOC2A
    Attach to Diameter 0.16 - 0.39 "
    Attach to Ø 4.0 - 10.0
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 4.0-45.0mm
    Bundle ∅ min. 4.0mm
    Length (L) 305.0mm
    Min.Tensile Strength 225N
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026460253
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
