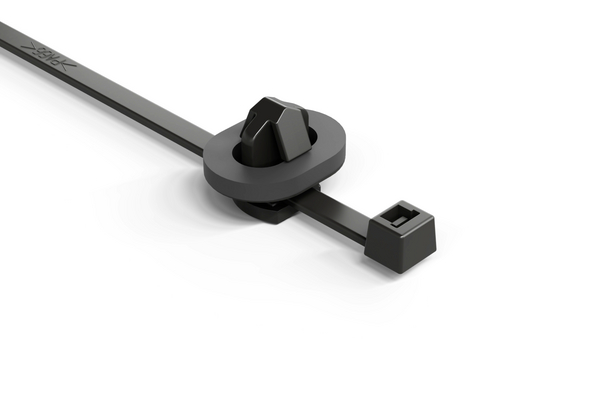

Fixing tie for hole (round), ∅1.5-45.0mm, black, 800Bag
Art.-No. 133-04379 | T50R0AH712PT1.5MD-PA66/EPDM/PA66HS-BK |  Details

    Add to watchlist

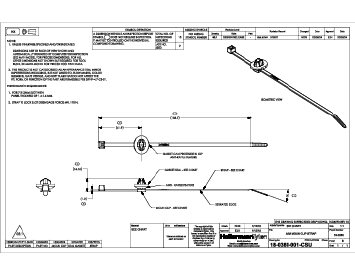

    Downloads Datasheet
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66), Ethylene Propylene Diene Terpolymer rubber free of Nitrosamine (EPDM), Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50R0AH712PT1.5MD-PA66/EPDM/PA66HS-BK
    Pack Cont. 800Bag
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R0AH712PT1.5MD
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 20.0mm
    Height (H) 16.2mm
    Length (L) 185.7mm
    Min.Tensile Strength 225N
    Panel Thickness max. 1.4 - 1.6mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 1.4 - 1.6 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
