Fixing tie for stud, ∅4.0-50.0mm, black/grey, 2000pcs.
Art.-No. 156-01293 | T50R0GSBS5USET-PA66/PA66HIRHS-BK/GY |  Details

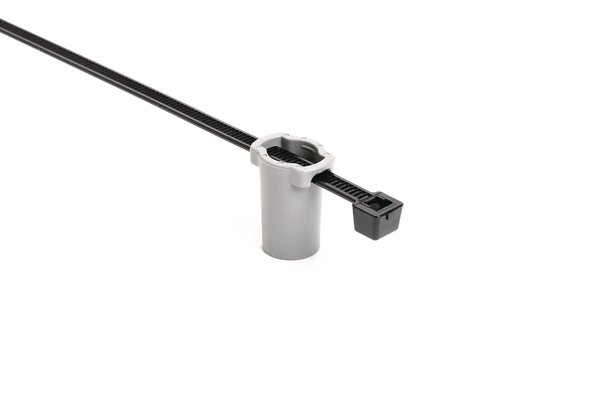

Versatile design allows cable routing above, perpendicular or parallel to stud.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK), Grey (GY)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6 (PA66), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50R0GSBS5USET-PA66/PA66HIRHS-BK/GY

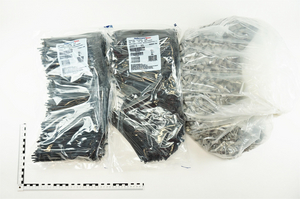

    Pack Cont. 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R0GSBS5USET
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 4.0-50.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 21.5mm

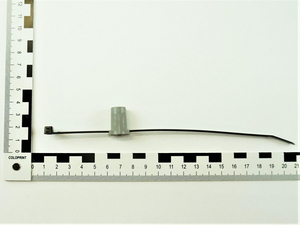

    Length (L) 203.2mm
    Min.Tensile Strength 110N
    Stud ∅ 0.20"
    Stud ∅ 5.0 mm
    Weight/Unit 0.002889kg
    for Hole ∅ (FH) M5 x 0.8, T5
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026491141
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 5.778001kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 6.398001kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 148.96kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
