23/12/2024

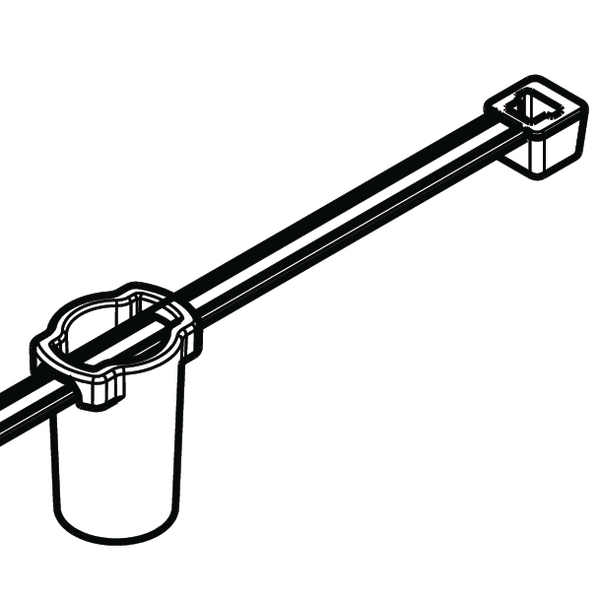

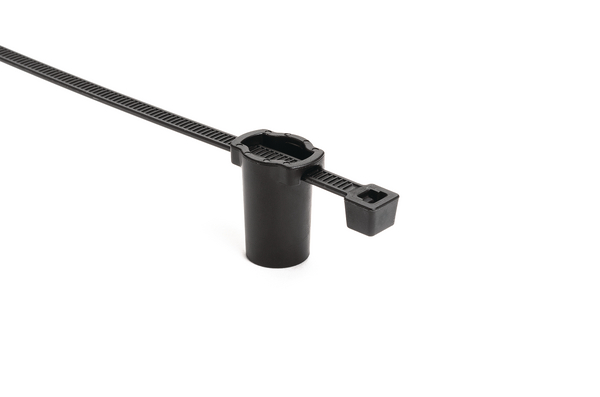

Fixing tie for stud, ∅4.0-50.0mm, black, 2000pcs.
Art.-No. 156-01295 | T50R0SBS6USET-PA66HS/PA66HIRHSW-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
    PART DESCRIPTION T50R0SBS6USET-PA66HS/PA66HIRHSW-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R0SBS6USET
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 4.0-50.0mm
    Bundle ∅ min. 4.0mm
    Fixing Hole Shape Oval
    Height (H) 21.5mm
    Length (L) 203.2mm
    Min.Tensile Strength 110N
    Stud ∅ M6
    Weight/Unit 0.002758kg
    for Hole ∅ (FH) M6 x 1
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026491165
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 6.136kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 143.72kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
