23/12/2024

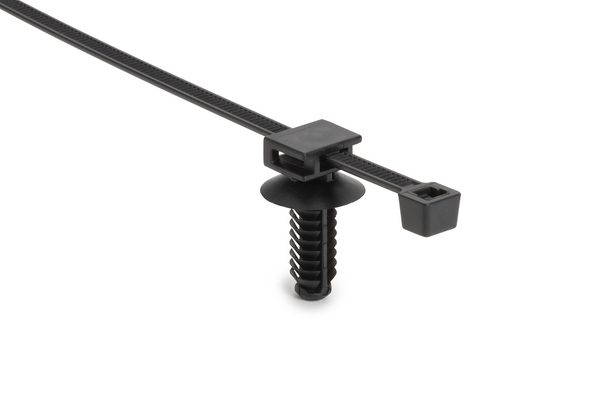

Fixing tie, inside serrated, ∅2.0-50.0mm, black, 2000pcs.
Art.-No. 156-03973 | T50RFT6.5SDLGSET-PA66HIRHS(REC100)-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC100))
    PART DESCRIPTION T50RFT6.5SDLGSET-PA66HIRHS(REC100)-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RFT6.5SDLGSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 28.07mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 12.5mm
    Width (W) 7.80mm
    for Hole ∅ (FH) 6.1 - 6.7 mm
    for Panel Thickness min - max 0.6 - 12.5 mm
    for Panel Thickness min - max 0 - 0.5 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4031026703022
    Packaging 3 - Height (m) 0.2047875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 2000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 4.65kg
    Packaging 3 - Width (m) 0.314325m
    Packaging 4 - Qty 80000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
