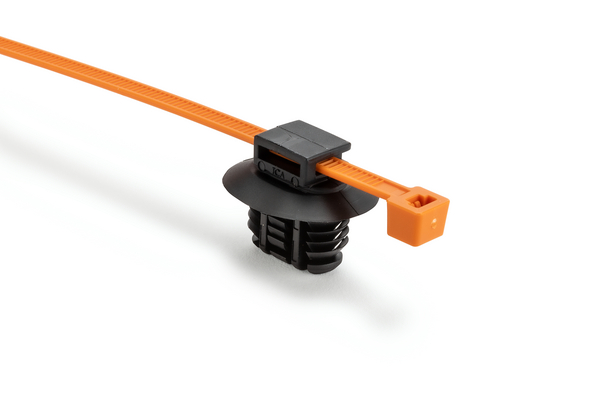

Fixing tie for hole (oval), inside serrated, ⌀5.0-50.0mm, orange/black, 2000pcs.
Art.-No. 156-04034 | T50RFT9X17A2SET-PA66HIRHS/PA66HIRHSUV-OG/BK |

Copied

    Add to watchlist
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RFT9X17A2SET-PA66HIRHS/PA66HIRHSUV-OG/BK
    Pack Cont. 2000pcs.
    Package Content packed in pack
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RFT9X17A2SET
    Variant Inside Serrated
    Bundle ⌀ 5.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 5.0mm
    Disc ⌀ 25.5mm
    Fixing Hole Shape Oval
    Height (H) 1.2mm
    Height (H2) 20.3mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 5.5mm
    Strap Width max. (G) 0.21"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 20.3mm
    for Hole ⌀ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 5.5 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026665740
    Packaging 1 - Type carton
    Packaging 3 - Height (m) 0.20954999999999998m
    Packaging 3 - Length (m) 0.6048375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0501m³
    Packaging 3 - Width (m) 0.39528749999999997m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
