23/12/2024

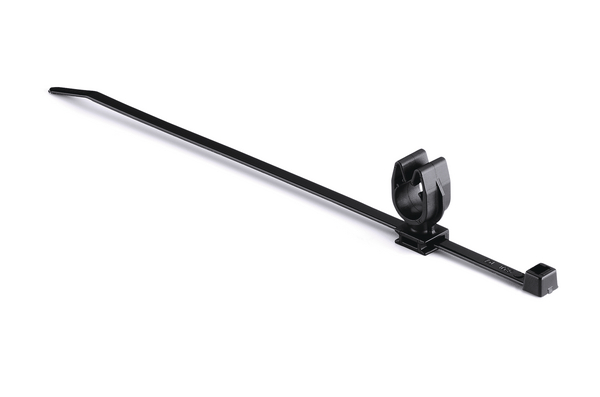

Fixing tie with pipe/tube holder, inside serrated, ∅9.5-11.5mm, black, 2000
Art.-No. 156-01815 | T50RMOC10SAD-SET-PA66HIRHSUV-BK |  Details

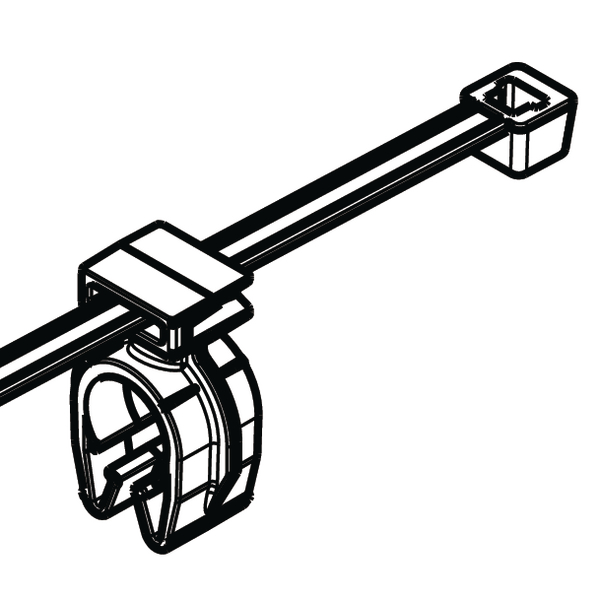

The bi-directional saddle design allows the bundles to be coupled parallel or perpendicular to one another.

    Add to watchlist
    Downloads Datasheet
    Cable ∅ max 50.0mm
    Cable ∅ min 1.5mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RMOC10SAD-SET-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RMOC10SAD-SET
    Variant Inside Serrated
    Bundle Diameter Nom. (ND) 10.0 mm
    Bundle Diameter max (metric) 11.5mm
    Bundle ∅ 9.5-11.5mm
    Bundle ∅ min. 9.5mm
    Depth (D) 10.0mm
    Height (H) 25.8mm
    Length (L) 16.9mm
    Length (L2) 14.6mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026592381
    Packaging 1 - Weight (kg) 201.34kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
