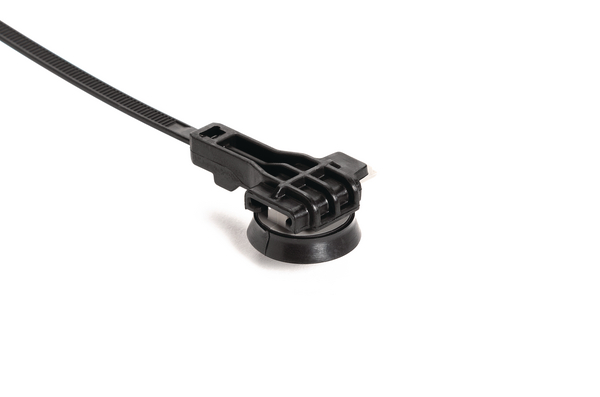

Fixing tie for hole (round), ∅2-50mm, black/grey, 2000pcs.
Art.-No. 156-02544 | T50ROS25BCCSRAH1.4T-PA66HIRHSUV/TPE-BK/GY |  Details

The additional seal protects against the ingress of moisture.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions
    • Seal protects against splash water
    • Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Colour Black (BK), Grey (GY)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION T50ROS25BCCSRAH1.4T-PA66HIRHSUV/TPE-BK/GY
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Product Family for round holes, sealed
    Product Group 2-piece fixing ties with arrowhead, with disc
    Tie Closure plastic pawl
    Type T50ROS25BCCSRAH1.4T
    Bundle Diameter max (metric) 50mm
    Bundle ∅ 2-50mm
    Bundle ∅ min. 2mm
    Height (H) 18.5mm
    Length (L) 228mm
    Min.Tensile Strength 222N
    Offset Length 25.0mm
    Panel Thickness max. 1.2 - 1.8mm
    Width (W) 28.4mm
    for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
    for Panel Thickness min - max 1.2 - 1.8 mm
    for Panel Thickness min - max 0.1 - 0.1 "
    CE Certification No
    Operating Temperature -40 °C to +110 °C, -35 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026726298
    Packaging 1 - Weight (kg) 0.005kg
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
