13/11/2024

Fixing tie to close hole, ∅2.5-50.0mm, black, 500pcs.
Art.-No. 156-01796 | T50ROSBHMB-PA66HS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Blind Plug
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50ROSBHMB-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type T50ROSBHMB
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.5-50.0mm
    Bundle ∅ min. 2.5mm

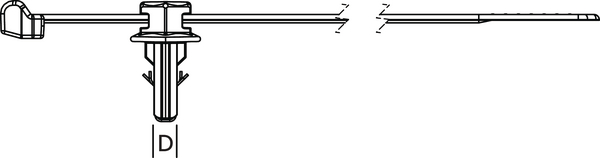

    Diameter (D) 6.35mm
    Height (H) 18.7mm
    Height (H2) 12.4mm
    Hole Depth 12.7mm

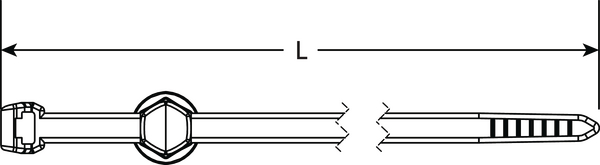

    Length (L) 203.2mm
    Min.Tensile Strength 225N
    Weight/Unit 0.002014kg
    Width (W) 7.8mm
    for Hole ∅ (FH) 6.25 - 6.45 mm
    ∅ D 0.25"
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026589107
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.5m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02048m³
    Packaging 1 - Weight (kg) 1.007001kg
    Packaging 1 - Width (m) 0.39m
    Packaging 3 - Height (m) 0.1524m
    Packaging 3 - Length (m) 0.3349625m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0132m³
    Packaging 3 - Weight (kg) 1.247001kg
    Packaging 3 - Width (m) 0.2587625m
    Packaging 4 - Height (m) 1.208m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 35000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.16m³
    Packaging 4 - Weight (kg) 108.29kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
