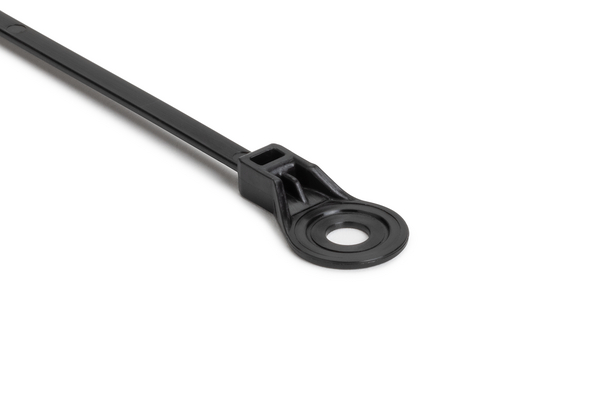

Fixing tie for hole (round), ∅2.0-50.0mm, black, 3000pcs.
Art.-No. 113-00071 | T50ROSBHMBTIE-PA66HIRHSUV-BK Details

  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space
Colour Black (BK)
Description Blind Hole Mount Offset Cable Ties secure bundles beside the mounting hole instead of directly above it. The unique design includes a heat stabilized cable tie and formula-matched, hex-head fastener that features a low insertion force and aggressively resists pull off. Performs equally well in threaded or non-threaded blind holes. Since cable or wire bundle is beside the fastener, the assembly can be removed using a hex driver from the mounting hole without cutting the cable tie. The fastener can then be reused.
Fixation Method Blind Plug
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T50ROSBHMBTIE-PA66HIRHSUV-BK
Pack Cont. 3000pcs.
Package Content packed in box
Releasable Closure (Yes/No) No
Type T50ROSBHMBTIE
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm
Diameter (D) 17.85mm
Length (L) 218.71mm
Min.Tensile Strength 225N
Offset Length 18.0mm
∅ D 0.70"
CE Certification No
CSA Certified No
Operating Temperature -40 °C to +130 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
GTIN-13 / EAN 4031026717685
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Width (m) 0.3175m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
