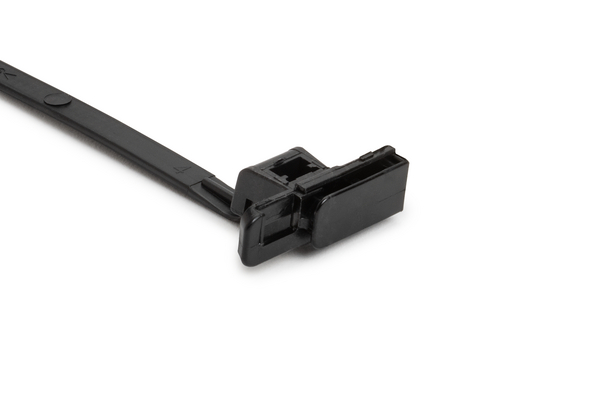

Fixing tie, inside serrated, ∅1.6-44.5mm, black, 2100Carton
Art.-No. 133-02809 | T50ROSCC7-PA66-BK | Details

Bundling and fixing solution
Ideal combination of materials and design
Different positions of the fixing anchor are available to fit installation space

Add to watchlist

Downloads Datasheet

Base Data

Colour	Black (BK)
Identification Plate Position	none
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	T50ROSCC7-PA66-BK
Pack Cont.	2100Carton
Package Content packed in	carton
Releasable Closure (Yes/No)	No
Type	T50ROSCC7

Product Dimensions

Bundle Diameter max (metric)	44.5mm
Bundle ∅	1.6-44.5mm
Bundle ∅ min.	1.6mm
Height (H)	9.0mm
Length (L)	187.1mm
Min.Tensile Strength	225N
Thickness (T)	1.3mm
Width (W)	4.8mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026580845
Packaging 3 - Height (m)	0.352m
Packaging 3 - Length (m)	0.572m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0703m³
Packaging 3 - Weight (kg)	4.82kg
Packaging 3 - Width (m)	0.349m

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
