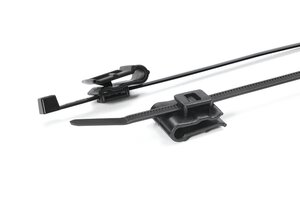

Fixing tie for edge, outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 156-00620 | T50ROSCST-PA66HS/PA66HIRHS-BK |  Details

The holding tab increases the tensile strength additionaly.

    • Pre-assembled 2-piece fixing tie with EdgeClip
    • Easy to assemble by hand
    • Cable tie head can be moved after bundling
    • For edges of 1.0 - 3.0 mm
    • Secure fixing of the EdgeClip into drill hole
    • Ideal for use wherever space is at its premium
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Due to the tie's reduced installation height it is ideal for use wherever space is at a premium.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)

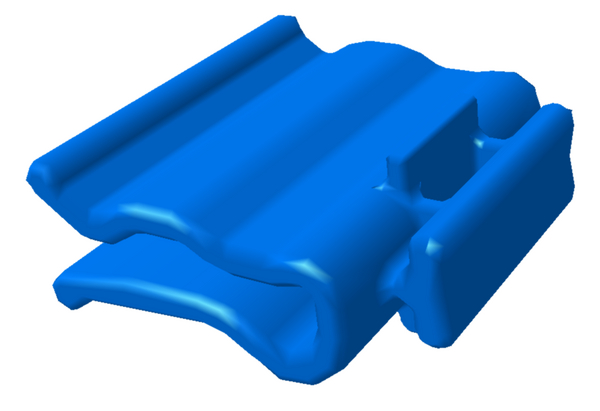

    Description This EdgeClip is very easy to mount. The holding tab snaps into the drill hole very securely. You will hear and feel the connection being made during mounting. Cable ties from a variety of product series and varying in terms of their dimensions and materials can be used in conjunction with this fixing element.
    Fixation Method Edge Clips without metal insert
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSCST-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for drill holes
    Product Group 2-piece fixing ties for edges
    Releasable Closure (Yes/No) No
    Type T50ROSCST
    Variant Outside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 4.0-45.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.3mm
    Height (H2) 18.9mm
    Length (L) 200.0mm
    Length (L2) 20.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7-1.5mm
    Width (W) 4.6mm
    Width (W2) 8.7mm
    for Panel Thickness min - max 0.7 - 1.5 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026404899
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
