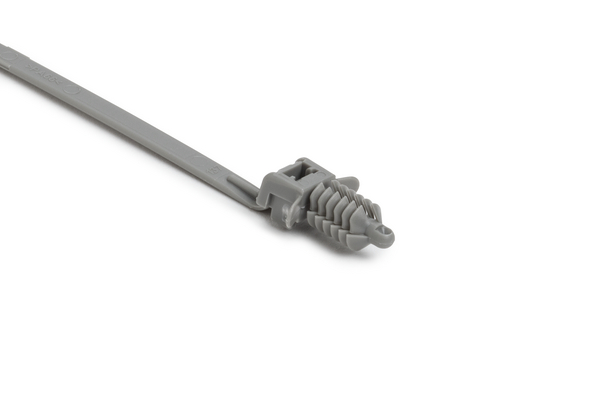

Fixing tie, outside serrated, ∅2.0-50.0mm, grey, 3000pcs.
Art.-No. 133-02836 | T50ROSFT6.5-PA66HIRHS-GY Details

  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space
Colour Grey (GY)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50ROSFT6.5-PA66HIRHS-GY
Pack Cont. 3000pcs.
Package Content packed in carton
Releasable Closure (Yes/No) No
Type T50ROSFT6.5
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm
Height (H) 15.1mm
Length (L) 151.7mm
Min.Tensile Strength 222N
Panel Thickness max. 0.8 - 6.3mm
Thickness (T) 1.2mm
Weight/Unit 0.001kg
Width (W) 4.8mm
for Hole ∅ (FH) 6.3 - 7.0 mm
for Panel Thickness min - max 0.8 - 6.3 mm
for Panel Thickness min - max 0 - 0.3 "
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026581705
Packaging 1 - Qty 3000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 3.000001kg
Packaging 3 - Height (m) 0.35242499999999995m
Packaging 3 - Length (m) 0.5715m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0703
Packaging 3 - Weight (kg) 3.730001kg
Packaging 3 - Width (m) 0.34925m
Packaging 4 - Height (m) 1.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.152
Packaging 4 - Weight (kg) 65.76kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
