26/12/2024

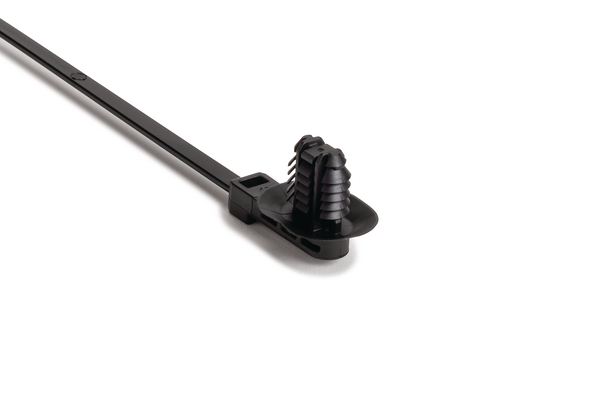

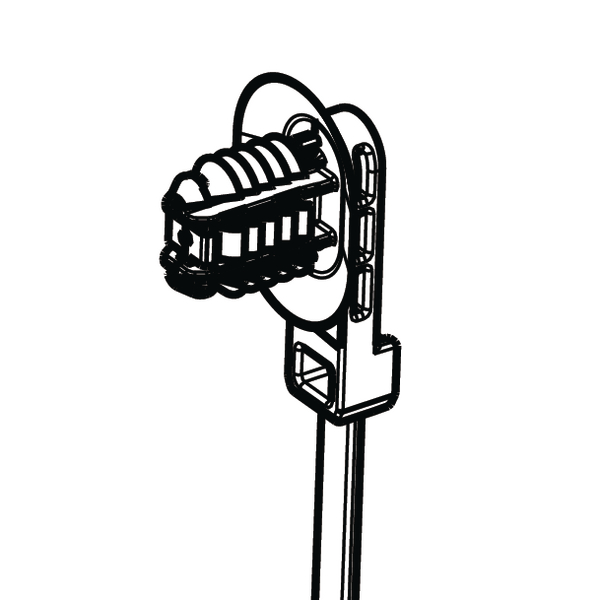

Fixing tie for hole (oval), outside serrated, ∅2.0-50.0mm, black, 3000pcs.
Art.-No. 157-00502 | T50ROSFTOVALIL15B-PA66HIRHSUV-BK |  Details

Fir tree mounts are designed to provide low insertion force and high extraction force.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    • 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFTOVALIL15B-PA66HIRHSUV-BK
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Product Family with offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes
    Releasable Closure (Yes/No) No
    Type T50ROSFTOVALIL15B
    Variant Outside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 17.6 x 23.6mm
    Fixing Hole Shape Oval
    Height (H) 17.6mm
    Length (L) 222.3mm
    Min.Tensile Strength 225N
    Offset Length 15.0mm
    Panel Thickness max. 0.6 - 6.75mm
    Width (W) 4.7mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026650586
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
