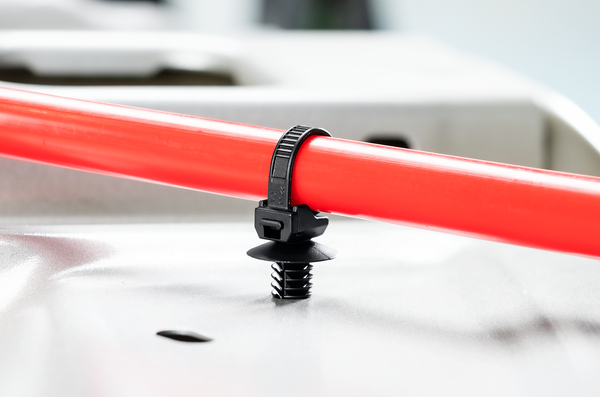

Fixing tie for hole (oval), outside serrated, ∅2.0-50.0mm, black, 3000pcs.
Art.-No. 157-04101 | T50ROSFTOVALU-PA66HIRHS(REC100)-BK Details

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC100))
PART DESCRIPTION T50ROSFTOVALU-PA66HIRHS(REC100)-BK
Pack Cont. 3000pcs.
Package Content packed in carton
Product Family for oval holes
Product Group 1-piece fixing ties with fir tree, with disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl

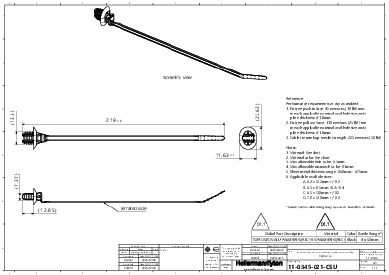

Type T50ROSFTOVALU
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm
Disc ∅ 17.6 x 23.6mm
Fixing Hole Shape Oval
Height (H) 12.8mm
Length (L) 219.0mm
Min.Tensile Strength 225N
Panel Thickness max. 0.6 - 6.75mm
Width (W) 5.1mm
for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6.8 mm
for Panel Thickness min - max 0 - 0.3 "
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
Country of Origin US
GTIN-13 / EAN 4031026702971
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Weight (kg) 7.5kg
Packaging 3 - Width (m) 0.2873375m
Packaging 4 - Qty 72000
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
