22/11/2024

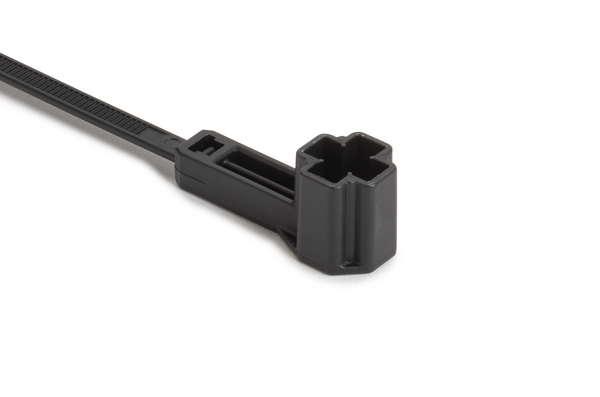

Fixing tie for stud, ∅2.0-50.0mm, black, 2000pcs.
Art.-No. 157-04147 | T50ROSM6SMSO25B-PA66HIRHSUV-BK Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T50ROSM6SMSO25B-PA66HIRHSUV-BK
Pack Cont. 2000pcs.
Package Content packed in carton
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50ROSM6SMSO25B
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm

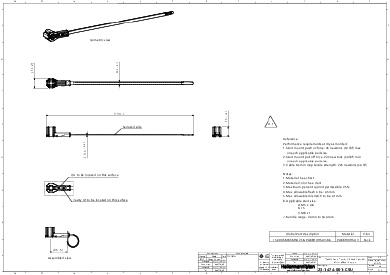

Height (H) 15.0mm
Length (L) 224.0mm
Min.Tensile Strength 225N
Offset Length 25.5mm
Stud ∅ 0.20 ", 0.24"
Stud ∅ 5.0 mm, 6.0 mm
Thickness (T) 1.35mm
Weight/Unit 0.003kg
Width (W) 4.7mm
for Hole ∅ (FH) M5 x 0.8, M6 x 1, T5
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026736662
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Weight (kg) 6.82kg
Packaging 3 - Width (m) 0.2921m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 102.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
