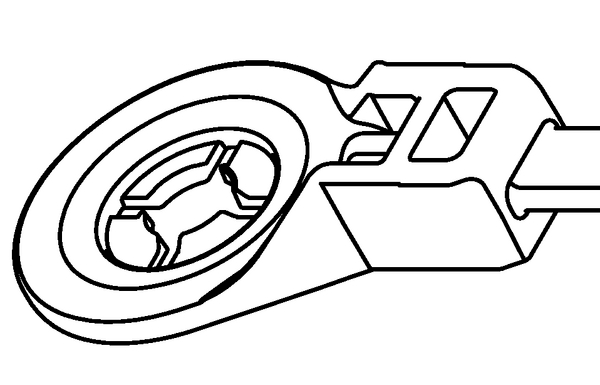

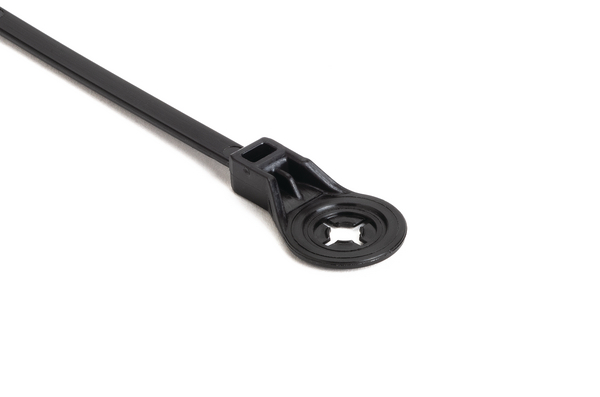

Fixing tie for stud, ∅2.0-50.0mm, black, 2000pcs.
Art.-No. 157-00394 | T50ROSPHM5-6SO18-PA66HIRHSUV-BK | Details

Bundling and fixing solution
Ideal combination of materials and design
Different positions of the fixing anchor are available to fit installation space

Add to watchlist

Downloads Datasheet

Base Data

Colour	Black (BK)
Fixation Method	Stud Mount
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T50ROSPHM5-6SO18-PA66HIRHSUV-BK
Pack Cont.	2000pcs.
Package Content packed in	box
Releasable Closure (Yes/No)	No
Type	T50ROSPHM5-6SO18

Product Dimensions

Bundle Diameter max (metric)	50.0mm
Bundle ∅	2.0-50.0mm
Bundle ∅ min.	2.0mm
Length (L)	218.71mm
Min.Tensile Strength	225N
Offset Length	18.0mm
Stud ∅	M6, M5
Width (W)	17.85mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +130 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	Yes

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026717692
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.517525m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Width (m)	0.3175m

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
