13/11/2024

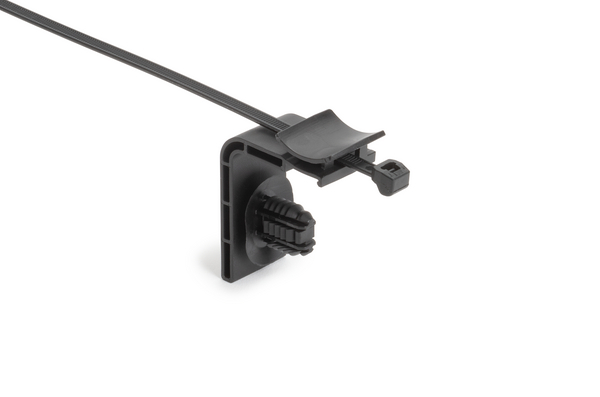

Fixing tie, inside serrated, ∅5.0-50.0mm, black, 300pcs.
Art.-No. 156-01665 | T50ROVALAPILLAR-SET-PA66HS/PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROVALAPILLAR-SET-PA66HS/PA66HIRHSUV-BK
    Pack Cont. 300pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROVALAPILLAR-SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 5.0-50.0mm
    Bundle ∅ min. 5.0mm
    Fixing Hole Shape Oval
    Height (H) 35.5mm
    Length (L) 45.7mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 6.75mm
    Thickness (T) 1.2mm
    Width (W) 20.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +125 °C, -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026573496
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 8.22kg
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
