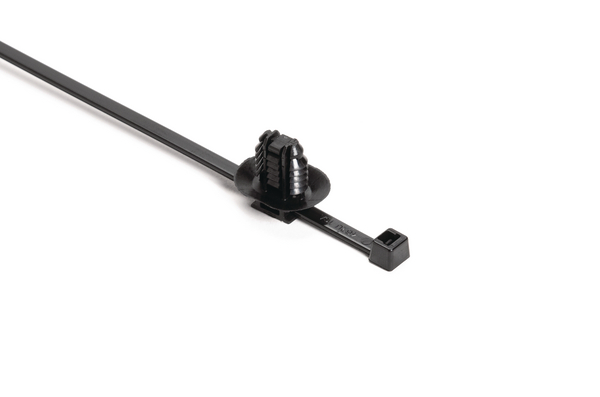

Fixing tie, inside serrated, ∅5.0-50.0mm, black, 3000pcs.
Art.-No. 156-03218 | T50RSADFTOVALSET-PA66HIRHS(REC100)-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC100))
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC100))
    PART DESCRIPTION T50RSADFTOVALSET-PA66HIRHS(REC100)-BK
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSADFTOVALSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 5.0-50.0mm
    Bundle ∅ min. 5.0mm
    Fixing Hole Shape Oval
    Height (H) 20.0mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 17.63mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4031026729541
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 3.77kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Qty 90000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
