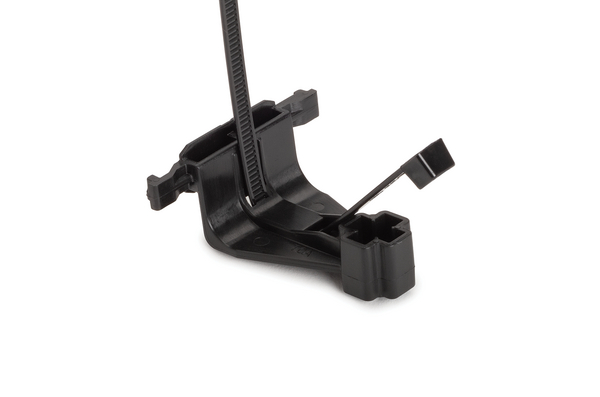

Fixing tie for stud, ∅3.0-25.0mm, black, 1000pcs.
Art.-No. 156-02980 | T50RSB5-6SO39CC11RSET-PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RSB5-6SO39CC11RSET-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in box
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSB5-6SO39CC11RSET
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 3.0-25.0mm
    Bundle ∅ min. 3.0mm
    Height (H) 24.3mm
    Length (L) 46.0mm
    Min.Tensile Strength 225N
    Stud ∅ 0.24 ", 0.20"
    Stud ∅ 6.0 mm, 5.0 mm
    Width (W) 47.8mm
    for Hole ∅ (FH) 5.0 - 6.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin US
    GTIN-13 / EAN 4031026640563
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
