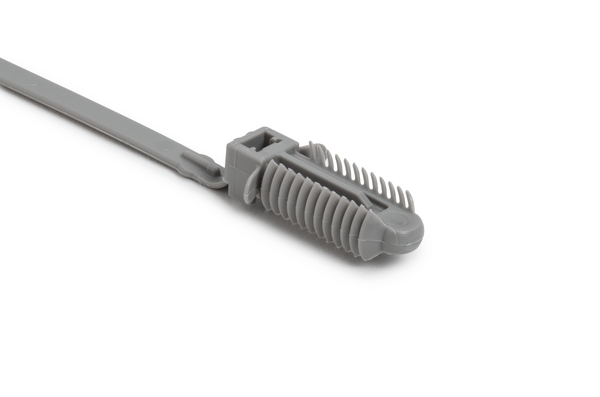

Fixing tie, inside serrated, ∅2.0-50.0mm, grey, 1200Carton
Art.-No. 133-02807 | T50SFT10XLG-PA66HIRHS-GY |  Details

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SFT10XLG-PA66HIRHS-GY
    Pack Cont. 1200Carton
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Type T50SFT10XLG
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 24.5mm
    Length (L) 167.9mm
    Min.Tensile Strength 222N
    Panel Thickness max. 15.0mm
    Thickness (T) 1.3mm
    Width (W) 4.8mm
    for Hole ∅ (FH) 10.0 mm
    for Panel Thickness min - max 15 - 15 mm
    for Panel Thickness min - max 0.6 - 0.6 "
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026580821
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Weight (kg) 2.72kg
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
