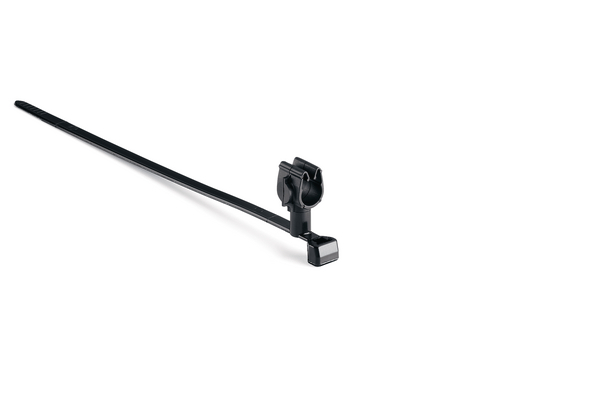

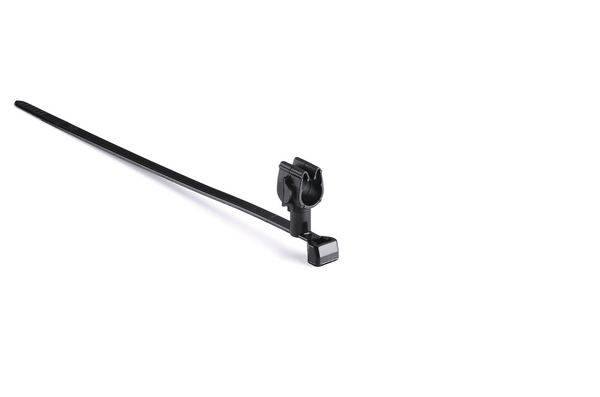

Fixing tie with pipe/tube holder, ∅6.0-8.0mm, black, 1000pcs.
Art.-No. 156-01784 | T50SMVCMOC7M180-PA66HIRHSUV-BK |  Details

Independent rotation allows for adjustable routing orientation.

    Add to watchlist
    Downloads Datasheet
    Cable ∅ max 50.0mm
    Cable ∅ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SMVCMOC7M180-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCMOC7M180
    Bundle Diameter Nom. (ND) 7.0 mm
    Bundle Diameter max (metric) 8.0mm
    Bundle ∅ 6.0-8.0mm
    Bundle ∅ min. 6.0mm
    Depth (D) 10.0mm
    Height (H) 28.9mm
    Length (L) 11.6mm
    Length (L2) 14.0mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026587394
    Packaging 1 - Weight (kg) 200.67kg
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
