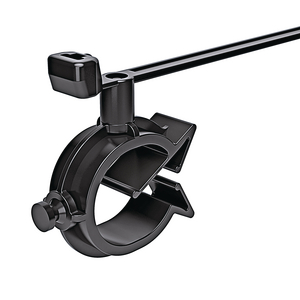

Fixing tie with pipe/tube holder, outside serrated, black, 500pcs.
Art.-No. 156-03041 | T50SOSASVCOC15-18-PA66HIRHS-BK |  Details

T50SOSASVCOC, rotatable, up to 18 mm diameter

    • simply clip onto a wire or hose
    • Fixing clip offers full 360° rotation
    • Routed cable can move in any direction in relation to the fixing point
    • Outside serrated cable tie
    • Ideally used in the Automotive Industry
    Show more
    Add to watchlist
    Downloads
    Application These outside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SOSASVCOC15-18-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Short Description 2-Piece fixing tie 155x4.7 mm, with pipe clip, black, outside serrated, anti.slp engraving
    Type T50SOSASVCOC15-18
    Variant Outside Serrated with AntiSlip Engraving
    Weight/Unit 0.003198kg
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026645667
    Packaging 1 - Height (m) 0.135m
    Packaging 1 - Length (m) 0.29m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01527m³
    Packaging 1 - Weight (kg) 1.642597kg
    Packaging 1 - Width (m) 0.39m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.675582kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 149.136kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
