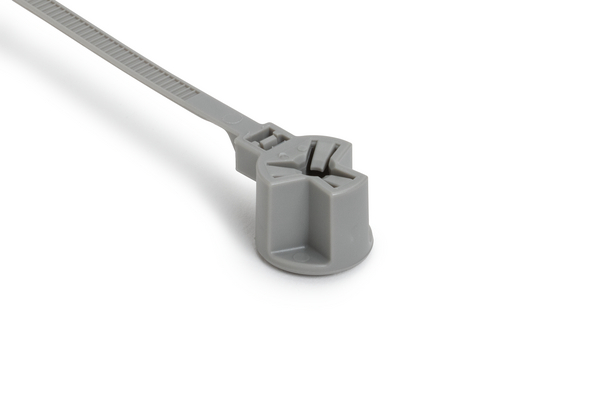

Fixing tie for stud, outside serrated, ∅2.0-50.0mm, grey, 1000Carton
Art.-No. 133-02812 | T50SOSSBT5-PA66HIRHS-GY Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Grey (GY)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50SOSSBT5-PA66HIRHS-GY
Pack Cont. 1000Carton
Package Content packed in carton
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSSBT5
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm

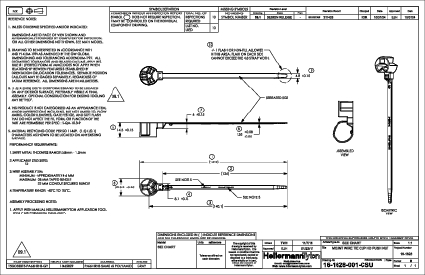

Height (H) 14.5mm
Length (L) 149.2mm
Min.Tensile Strength 222N
Stud ∅ 0.20"
Stud ∅ 5.0 mm
Thickness (T) 1.4mm
Weight/Unit 0.002669kg
Width (W) 4.8mm
for Hole ∅ (FH) 5.0 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026580876
Packaging 3 - Height (m) 0.1603502m
Packaging 3 - Length (m) 0.5159502m
Packaging 3 - Qty 1000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0282
Packaging 3 - Weight (kg) 2669kg
Packaging 3 - Width (m) 0.3413252m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
