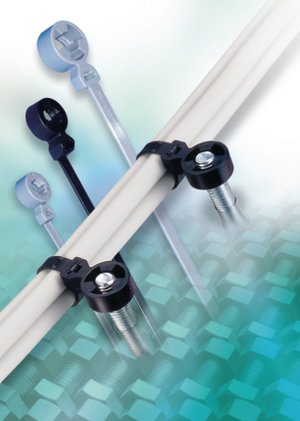

Fixing tie for stud, outside serrated, ∅3.0-30.0mm, grey, 100pcs.
Art.-No. 157-00065 | T50SOSSBU-M6-PA66HSUV-GY |  Details

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Cable Tie Polyamide 6.6, heat and UV-resistant (PA66HSW)
    Colour Grey (GY)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION T50SOSSBU-M6-PA66HSUV-GY
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family T50SOSSBU for cable routing alongside the stud
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Short Description 1-piece fixing tie for weld studs 175x5.7 mm grey
    Tie Closure plastic pawl
    Type T50SOSSBU-M6
    Variant Outside Serrated
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 3.0-30.0mm
    Bundle ∅ min. 3.0mm
    Length (L) 175.0mm
    Min.Tensile Strength 150N
    Stud ∅ M6
    Thickness (T) 1.3mm
    Weight/Unit 0.002876kg
    Width (W) 5.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4031026582832
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00242m³
    Packaging 1 - Weight (kg) 0.287601kg
    Packaging 1 - Width (m) 0.2m
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0494m³
    Packaging 3 - Weight (kg) 9.06803kg
    Packaging 3 - Width (m) 0.315m
    Packaging 4 - Height (m) 1.179m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 45000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.132m³
    Packaging 4 - Weight (kg) 157.02kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
