13/11/2024

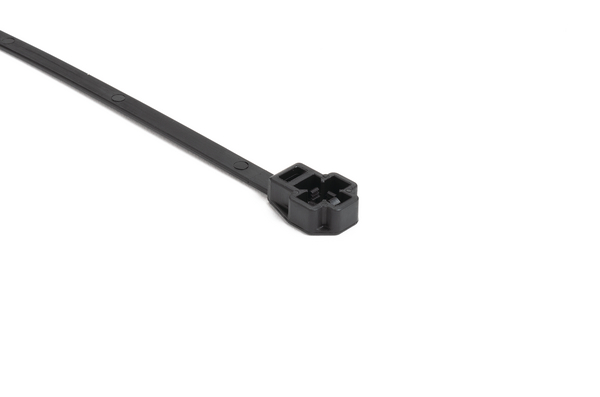

Fixing tie for stud, ∅3.5-50.0mm, black, 2500pcs.
Art.-No. 157-00460 | T80ROSLPSB5-6U-PA66HIRHSUV-BK |  Details

Low-profile head allows mounts to stack, providing more mounting versatility from a single stud.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T80ROSLPSB5-6U-PA66HIRHSUV-BK
    Pack Cont. 2500pcs.
    Package Content packed in carton
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T80ROSLPSB5-6U
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 3.5-50.0mm
    Bundle ∅ min. 3.5mm
    Height (H) 6.30mm
    Length (L) 208.3mm
    Min.Tensile Strength 355N
    Stud ∅ 0.20 ", 0.24"
    Stud ∅ 5.0 mm, 6.0 mm
    Width (W) 14.22mm
    for Hole ∅ (FH) M6 x 1, M5 x 0.8, T5, T6
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026717654
    Packaging 1 - Weight (kg) 4.84kg
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
